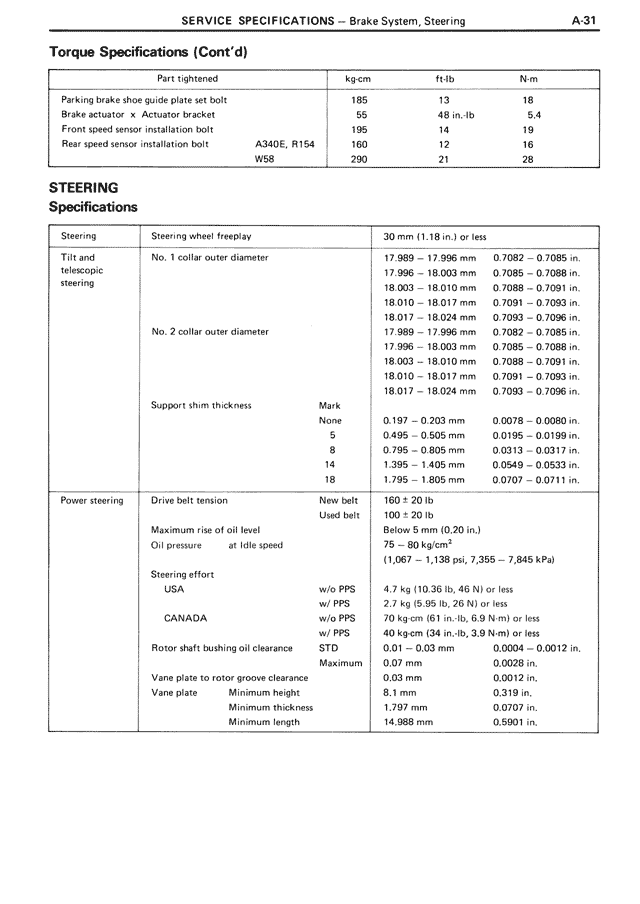

SERVICE SPECIFICATIONS — Brake System, Steering A-31 Torque Specifications (Cont'd) Part tightened kg-cm ft·lb N·m Parking brake shoe guide plate set bolt 185 13 18 Brake actuator × Actuator bracket 55 48 in.·lb 5.4 Front speed sensor installation bolt 195 14 19 Rear speed sensor installation bolt A340E, R154 160 12 16 W58 290 21 28 STEERING Specifications Steering Steering wheel freeplay 30 mm (1.18 in.) or less Tilt and No. 1 collar outer diameter 17.989 — 17.996 mm 0.7082 — 0.7085 in. telescopic 17.996 — 18.003 mm 0.7085 — 0.7088 in. steering 18.003 — 18.010 mm 0.7088 — 0.7091 in. 18.010 — 18.017 mm 0.7091 — 0.7093 in. 18.017 — 18.024 mm 0.7093 — 0.7096 in. No. 2 collar outer diameter 17.989 — 17.996 mm 0.7082 — 0.7085 in. 17.996 — 18.003 mm 0.7085 — 0.7088 in. 18.003 — 18.010 mm 0.7088 — 0.7091 in. 18.010 — 18.017 mm 0.7091 — 0.7093 in. 18.017 — 18.024 mm 0.7093 — 0.7096 in. Support shim thickness Mark None 0.197 — 0.203 mm 0.0078 — 0.0080 in. 5 0.495 — 0.505 mm 0.0195 — 0.0199 in. 8 0.795 — 0.805 mm 0.0313 — 0.0317 in. 14 1.395 — 1.405 mm 0.0549 — 0.0533 in. 18 1.795 — 1.805 mm 0.0707 — 0.0711 in. Power steering Drive belt tension New belt 160 ± 20 lb Used belt 100 ± 20 lb Maximum rise of oil level Below 5 mm (0.20 in.) Oil pressure at idle speed 75 — 80 kg/cm² (1,067 — 1,138 psi, 7,355 — 7,845 kPa) Steering effort USA w/o PPS 4.7 kg (10.36 lb, 46 N) or less w/ PPS 2.7 kg (5.95 lb, 26 N) or less CANADA w/o PPS 70 kg·cm (61 in.·lb, 6.9 N·m) or less w/ PPS 40 kg·cm (34 in.·lb, 3.9 N·m) or less Rotor shaft bushing oil clearance STD 0.01 — 0.03 mm 0.0004 — 0.0012 in. Maximum 0.07 mm 0.0028 in. Vane plate to rotor groove clearance 0.03 mm 0.0012 in. Vane plate Minimum height 8.1 mm 0.319 in. Minimum thickness 1.797 mm 0.0707 in. Minimum length 14.988 mm 0.5901 in.
