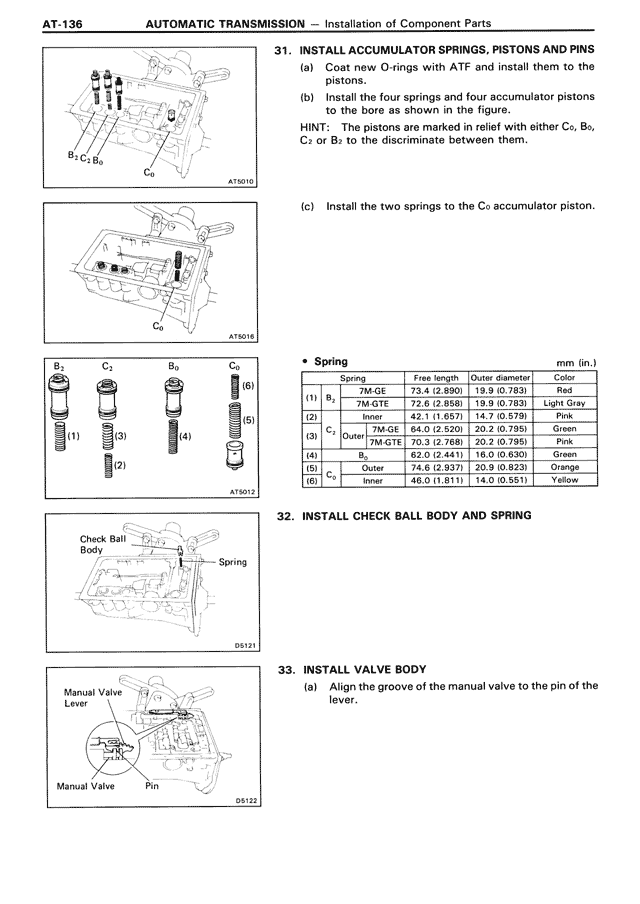

31. INSTALL ACCUMULATOR SPRINGS, PISTONS AND PINS (a) Coat new O-rings with ATF and install them to the pistons. (b) Install the four springs and four accumulator pistons to the bore as shown in the figure. HINT: The pistons are marked in relief with either C₀, B₀, C₂ or B₂ to the discriminate between them. (c) Install the two springs to the C₄ accumulator piston. Spring mm (in.) Spring Apply side Free length Outer diameter Color (1) B₂ 7M-GTE 72.6 (2.858) 19.9 (0.783) Light Gray (2) Inner 42.1 (1.657) 14.7 (0.579) Pink (3) C₂ Outer 7M-GE 7M-GTE 64.0 (2.520) 70.3 (2.768) 20.2 (0.795) 20.2 (0.795) Green Pink (4) B₀ 62.0 (2.441) 16.0 (0.630) Green (5) C₄ Outer 74.6 (2.937) 20.9 (0.823) Orange (6) Inner 46.0 (1.811) 14.0 (0.551) Yellow 32. INSTALL CHECK BALL BODY AND SPRING 33. INSTALL VALVE BODY (a) Align the groove of the manual valve to the pin of the lever.
