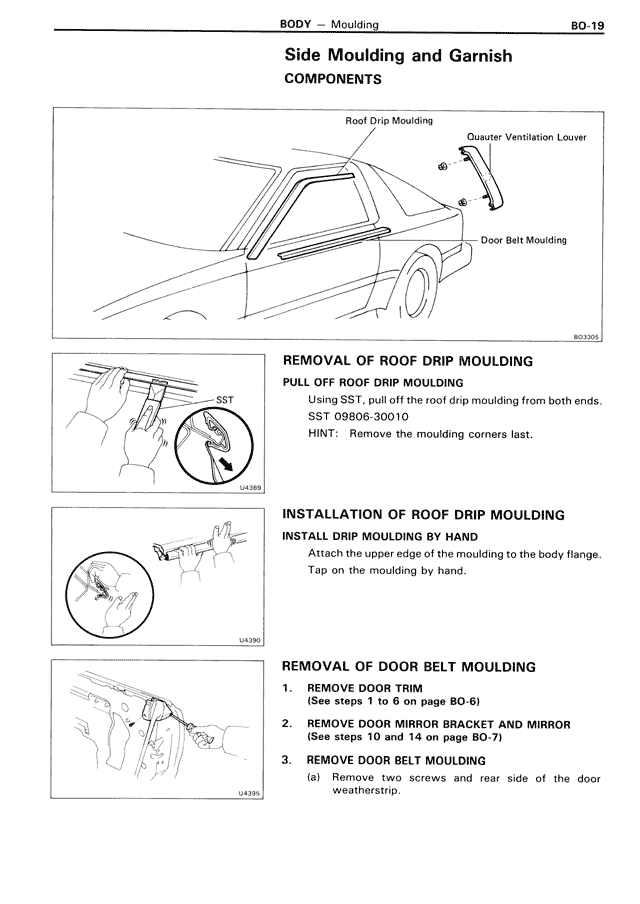

Side Moulding and Garnish COMPONENTS Roof Drip Moulding Quarter Ventilation Louver Door Belt Moulding REMOVAL OF ROOF DRIP MOULDING PULL OFF ROOF DRIP MOULDING Using SST, pull off the roof drip moulding from both ends. SST 09806-30010 HINT: Remove the moulding corners last. INSTALLATION OF ROOF DRIP MOULDING INSTALL DRIP MOULDING BY HAND Attach the upper edge of the moulding to the body flange. Tap on the moulding by hand. REMOVAL OF DOOR BELT MOULDING 1. REMOVE DOOR TRIM (See steps 1 to 6 on page BO-6) 2. REMOVE DOOR MIRROR BRACKET AND MIRROR (See steps 10 and 14 on page BO-7) 3. REMOVE DOOR BELT MOULDING (a) Remove two screws and rear side of the door weatherstrip.
