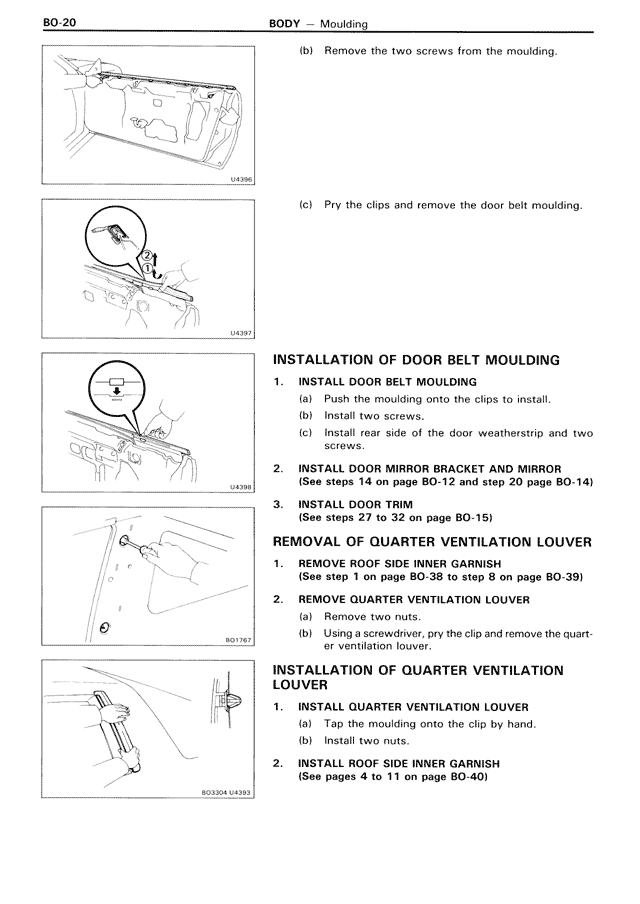

BO-20
BODY — Moulding
(b) Remove the two screws from the moulding.
(c) Pry the clips and remove the door belt moulding.
INSTALLATION OF DOOR BELT MOULDING
1. INSTALL DOOR BELT MOULDING
(a) Push the moulding onto the clips to install.
(b) Install two screws.
(c) Install rear side of the door weatherstrip and two screws.
2. INSTALL DOOR MIRROR BRACKET AND MIRROR
(See steps 14 on page BO-12 and step 20 page BO-14)
3. INSTALL DOOR TRIM
(See steps 27 to 32 on page BO-15)
REMOVAL OF QUARTER VENTILATION LOUVER
1. REMOVE ROOF SIDE INNER GARNISH
(See step 1 on page BO-38 to step 8 on page BO-39)
2. REMOVE QUARTER VENTILATION LOUVER
(a) Remove two nuts.
(b) Using a screwdriver, pry the clip and remove the quarter ventilation louver.
INSTALLATION OF QUARTER VENTILATION LOUVER
1. INSTALL QUARTER VENTILATION LOUVER
(a) Tap the moulding onto the clip by hand.
(b) Install two nuts.
2. INSTALL ROOF SIDE INNER GARNISH
(See pages 4 to 11 on page BO-40)
