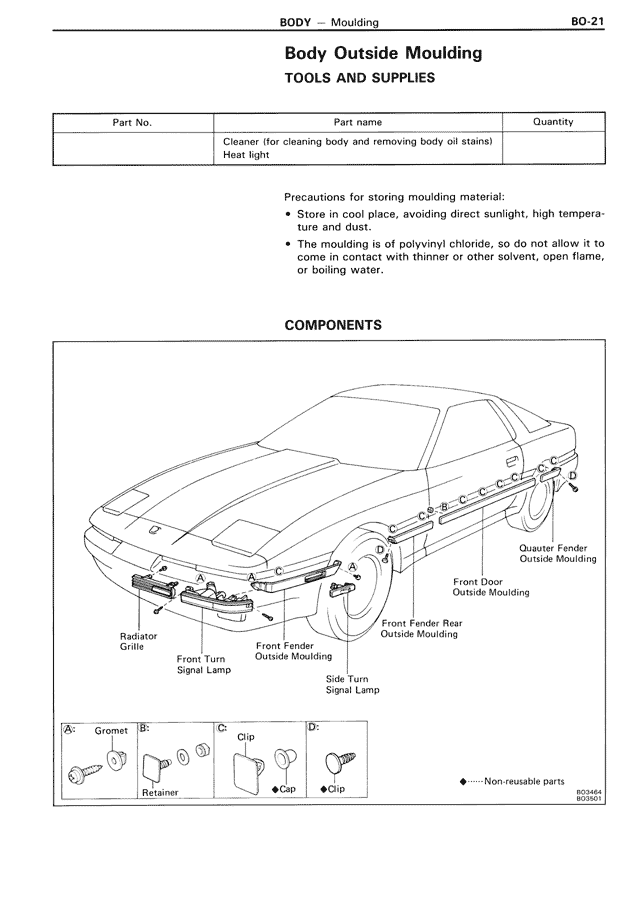

Body Outside Moulding
TOOLS AND SUPPLIES
Part No. Part name Quantity
Cleaner (for cleaning body and removing body oil stains)
Heat light
Precautions for storing moulding material:
• Store in cool place, avoiding direct sunlight, high temperature and dust.
• The moulding is of polyvinyl chloride, so do not allow it to come in contact with thinner or other solvent, open flame, or boiling water.
COMPONENTS
Quarter Fender Outside Moulding
Front Door Outside Moulding
Front Fender Rear Outside Moulding
Front Fender Outside Moulding
Radiator Grille
Front Turn Signal Lamp
Side Turn Signal Lamp
A: Grommet
B: Retainer
C: Clip ◆Cap
D: ◆Clip
♦···Non reusable parts
BO3664 BO3663
