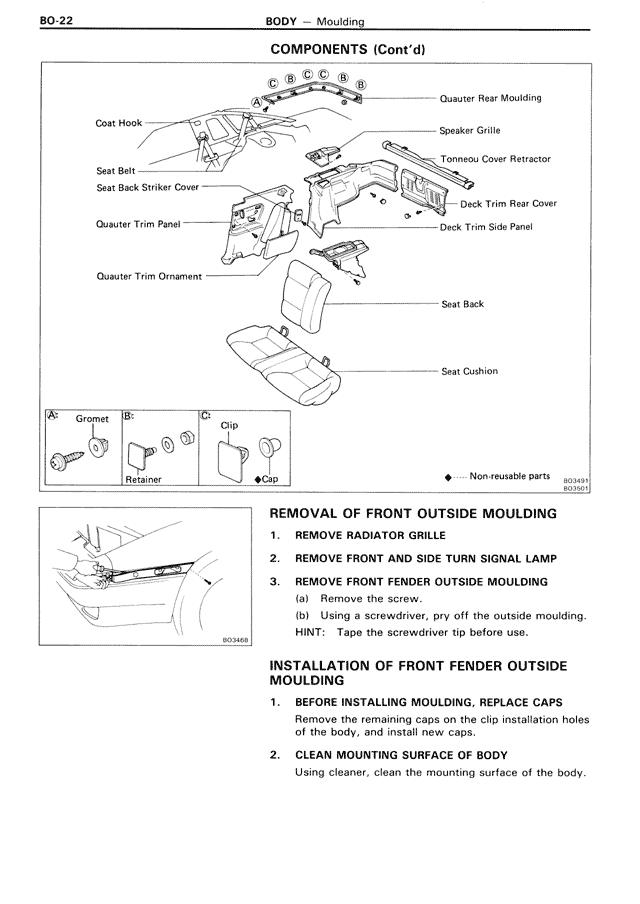

BO-22 BODY — Moulding
COMPONENTS (Cont'd)
[Diagram showing various car body components with labels:]
Quarter Rear Moulding
Coat Hook
Speaker Grille
Seat Belt
Tonneau Cover Retractor
Seat Back Striker Cover
Deck Trim Rear Cover
Quarter Trim Panel
Deck Trim Side Panel
Quarter Trim Ornament
Seat Back
Seat Cushion
[Small diagrams at bottom showing:]
A: Grommet
B: Retainer
C: Clip
♦Cap
♦ Non-reusable parts
BO2651
BO2631
REMOVAL OF FRONT OUTSIDE MOULDING
1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT AND SIDE TURN SIGNAL LAMP
3. REMOVE FRONT FENDER OUTSIDE MOULDING
(a) Remove the screw.
(b) Using a screwdriver, pry off the outside moulding.
HINT: Tape the screwdriver tip before use.
INSTALLATION OF FRONT FENDER OUTSIDE
MOULDING
1. BEFORE INSTALLING MOULDING, REPLACE CAPS
Remove the remaining caps on the clip installation holes
of the body, and install new caps.
2. CLEAN MOUNTING SURFACE OF BODY
Using cleaner, clean the mounting surface of the body.
BO2458
