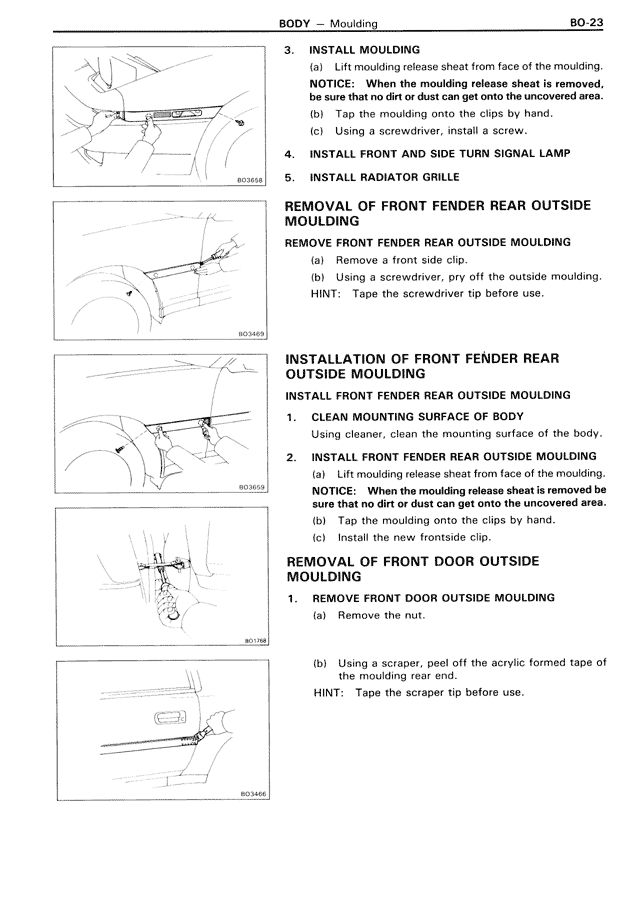

3. INSTALL MOULDING
(a) Lift moulding release sheet from face of the moulding.
NOTICE: When the moulding release sheet is removed,
be sure that no dirt or dust can get onto the uncovered area.
(b) Tap the moulding onto the clips by hand.
(c) Using a screwdriver, install a screw.
4. INSTALL FRONT AND SIDE TURN SIGNAL LAMP
5. INSTALL RADIATOR GRILLE
REMOVAL OF FRONT FENDER REAR OUTSIDE
MOULDING
REMOVE FRONT FENDER REAR OUTSIDE MOULDING
(a) Remove a front side clip.
(b) Using a screwdriver, pry off the outside moulding.
HINT: Tape the screwdriver tip before use.
INSTALLATION OF FRONT FENDER REAR
OUTSIDE MOULDING
INSTALL FRONT FENDER REAR OUTSIDE MOULDING
1. CLEAN MOUNTING SURFACE OF BODY
Using cleaner, clean the mounting surface of the body.
2. INSTALL FRONT FENDER REAR OUTSIDE MOULDING
(a) Lift moulding release sheet from face of the moulding.
NOTICE: When the moulding release sheet is removed be
sure that no dirt or dust can get onto the uncovered area.
(b) Tap the moulding onto the clips by hand.
(c) Install the new frontside clip.
REMOVAL OF FRONT DOOR OUTSIDE
MOULDING
1. REMOVE FRONT DOOR OUTSIDE MOULDING
(a) Remove the nut.
(b) Using a scraper, peel off the acrylic formed tape of
the moulding rear end.
HINT: Tape the scraper tip before use.
