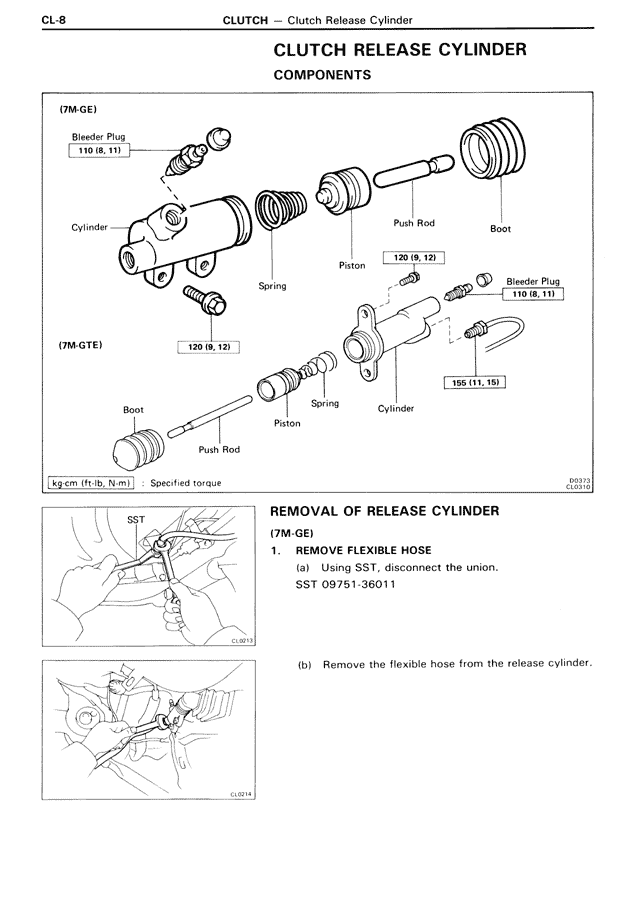

CLUTCH RELEASE CYLINDER
COMPONENTS
(7M-GE)
Bleeder Plug
110 (8, 11)
Cylinder
Push Rod
120 (9, 12)
Boot
Piston
Spring
Bleeder Plug
110 (8, 11)
(7M-GTE)
120 (9, 12)
Boot
Push Rod
Piston
Spring
155 (11, 15)
Cylinder
kg·cm (ft·lb, N·m) : Specified torque
P00373
E00373
REMOVAL OF RELEASE CYLINDER
(7M-GE)
1. REMOVE FLEXIBLE HOSE
(a) Using SST, disconnect the union.
SST 09751-36011
SST
CL0213
(b) Remove the flexible hose from the release cylinder.
CL0214
