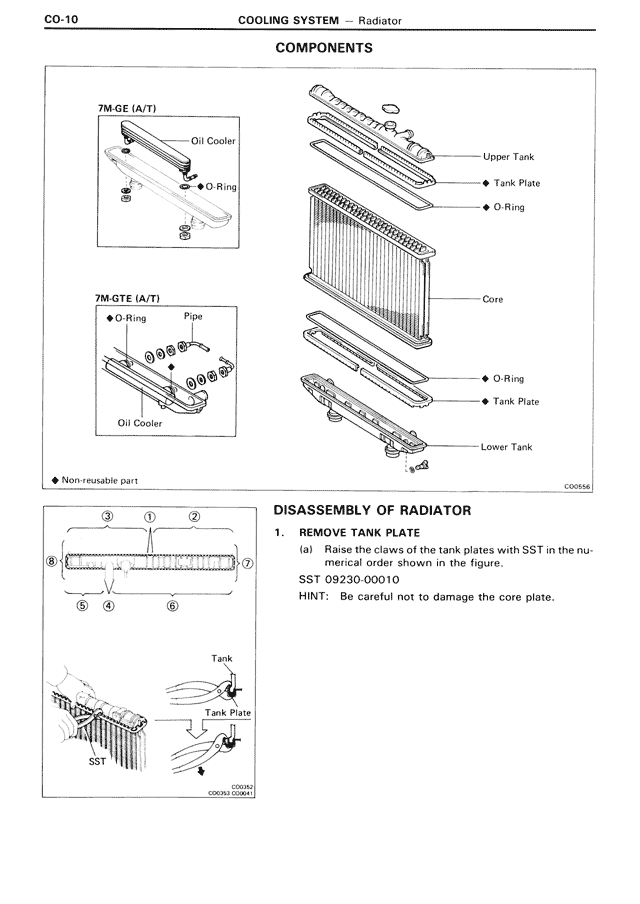

COMPONENTS
7M-GE (A/T)
Oil Cooler
♦ O-Ring
7M-GTE (E/T)
♦ O-Ring
Pipe
Oil Cooler
Upper Tank
♦ Tank Plate
♦ O-Ring
Core
♦ O-Ring
♦ Tank Plate
Lower Tank
♦ Non-reusable part
DISASSEMBLY OF RADIATOR
1. REMOVE TANK PLATE
(a) Raise the claws of the tank plates with SST in the numerical order shown in the figure.
SST 09230-00010
HINT: Be careful not to damage the core plate.
Tank
Tank Plate
SST
