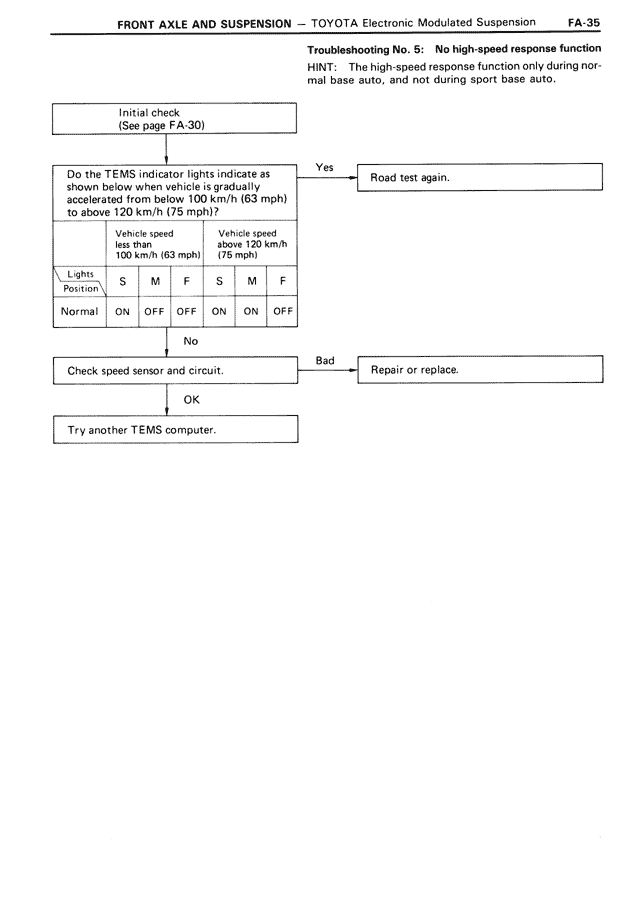

FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension FA-35
Troubleshooting No. 5: No high-speed response function
HINT: The high-speed response function only during nor-
mal base auto, and not during sport base auto.
Initial check
(See page FA-30)
Do the TEMS indicator lights indicate as
shown below when vehicle is gradually
accelerated from below 100 km/h (63 mph)
to above 120 km/h (75 mph)?
Vehicle speed Vehicle speed
less than above 120 km/h
100 km/h (63 mph) (75 mph)
Lights
Position S M F S M F
Normal ON OFF OFF ON ON OFF
Yes → Road test again.
No ↓
Check speed sensor and circuit.
Bad → Repair or replace.
OK ↓
Try another TEMS computer.
