OWD/Overall Wiring Diagram29 / 42

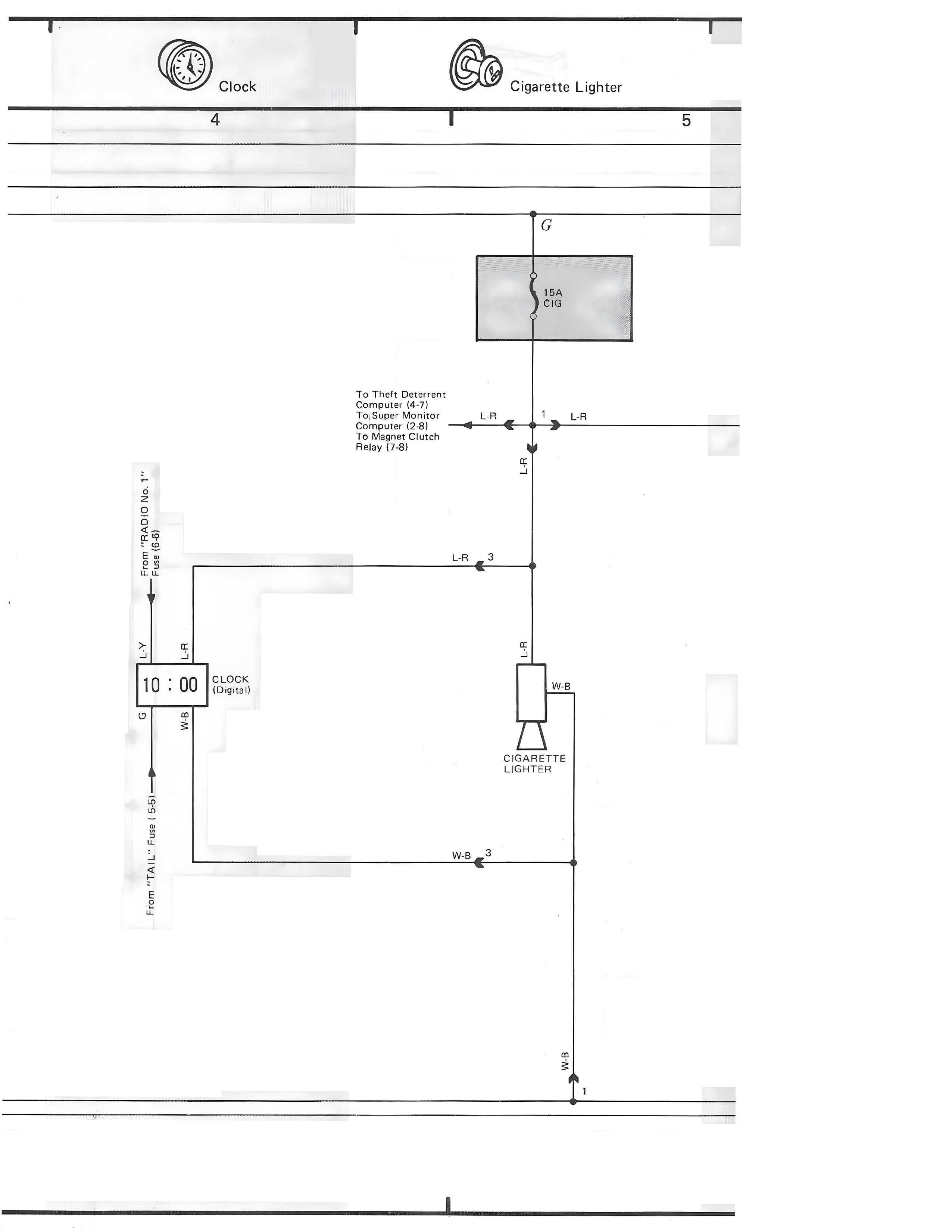

Overall Wiring Diagram page 29

100%

Clock 4 Cigarette Lighter 5 G 15A CIG To Theft Deterrent Computer (4-7) To Power Steering Computer (2-8) To Magnet Clutch Relay (7-8) L-R 1 L-R L-R L-R 3 From RADIO No. 1 Fuse (8-8) L-Y L-R 10 : 00 CLOCK (Digital) G W-B L-R W-B CIGARETTE LIGHTER From TAIL Fuse (8-) W-B 3 W-B 1
