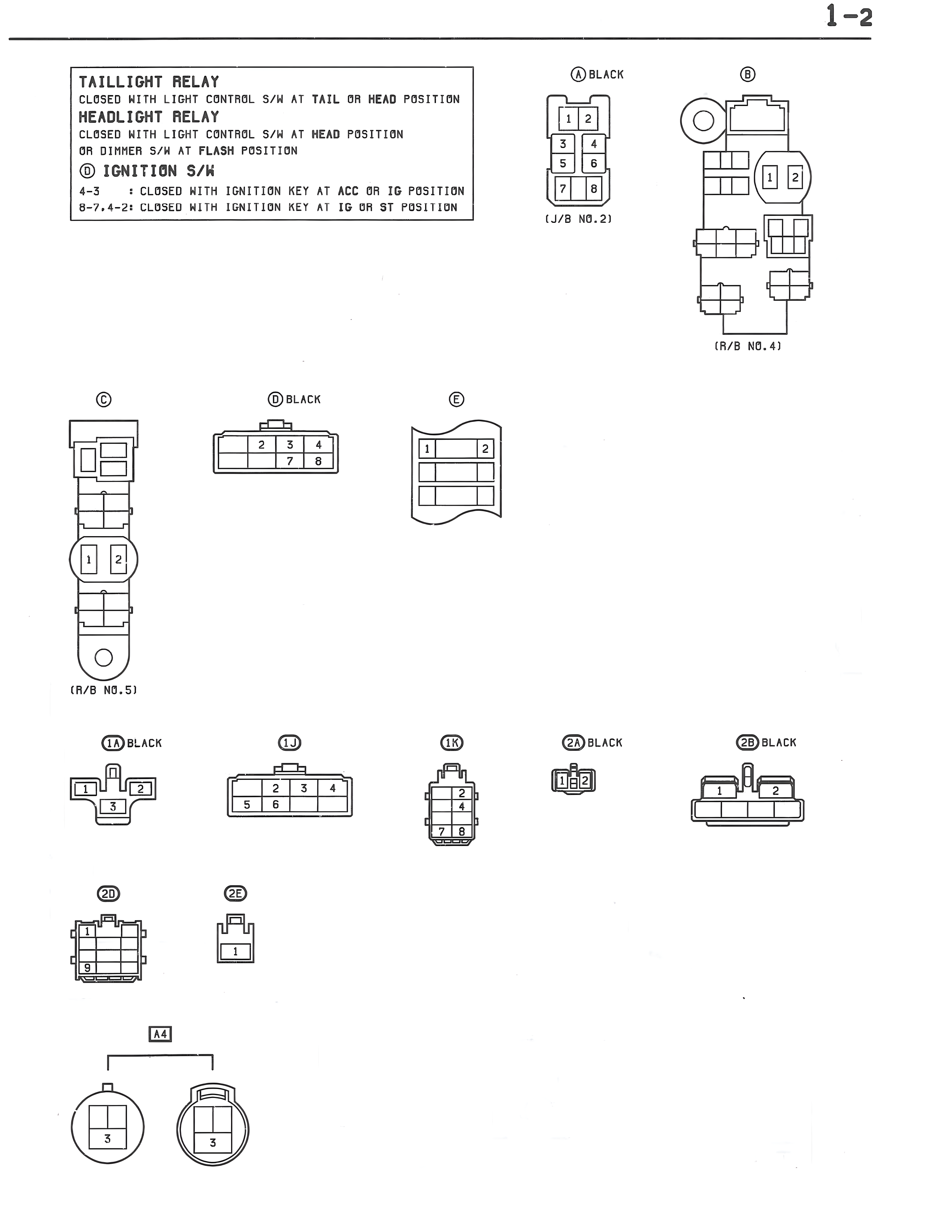

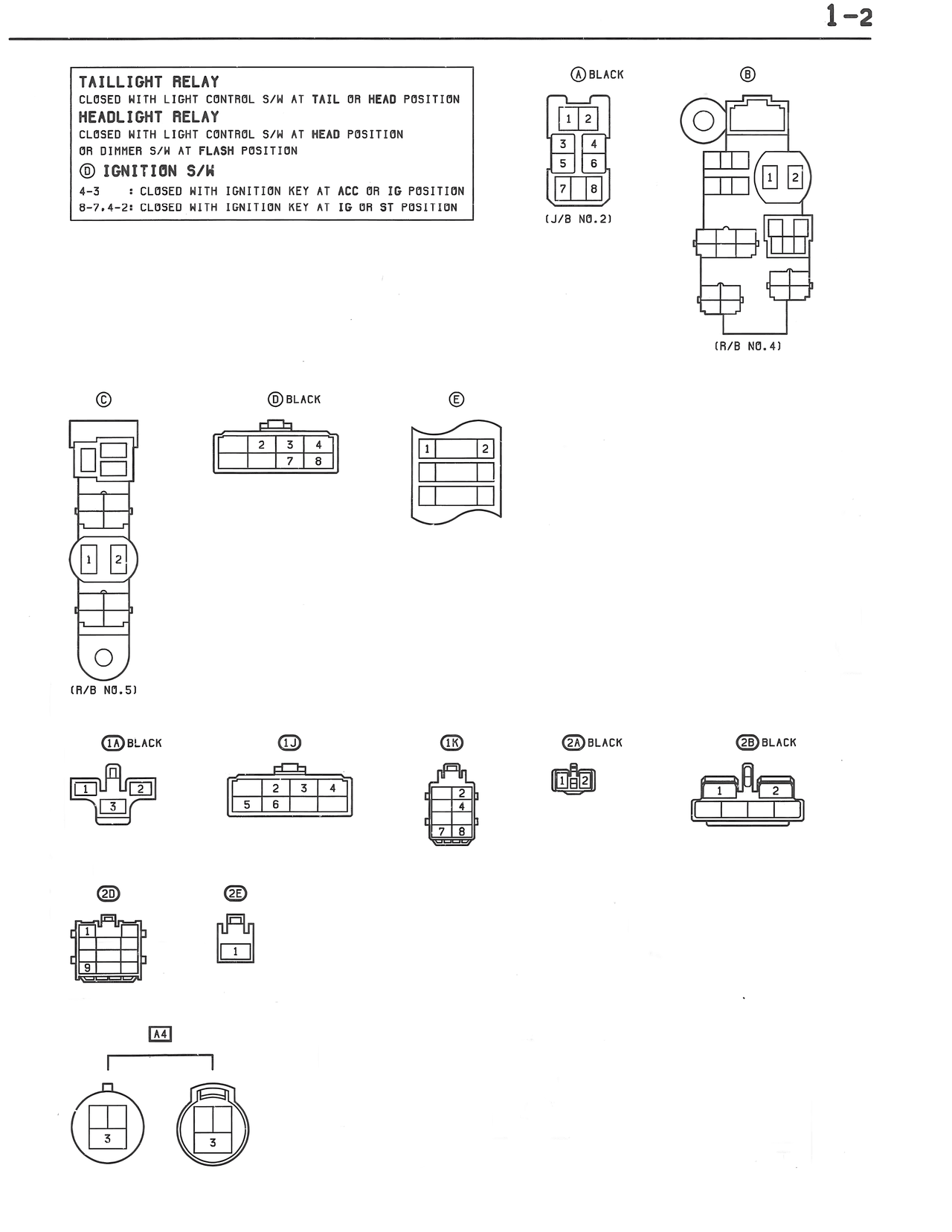

S1/Power Source, page 4

1-2

TAILLIGHT RELAY
CLOSED WITH LIGHT CONTROL S/W AT TAIL OR HEAD POSITION
HEADLIGHT RELAY
CLOSED WITH LIGHT CONTROL S/W AT HEAD POSITION
OR DIMMER S/W AT FLASH POSITION
Ⓓ IGNITION S/W
4~5    : CLOSED WITH IGNITION KEY AT ACC OR IG POSITION
8~7,4~2: CLOSED WITH IGNITION KEY AT IG OR ST POSITION

Ⓐ BLACK
1 2
3 4
5 6
7 8
(J/B NO.2)

Ⓑ
1 2
(R/B NO.4)

Ⓒ

Ⓓ BLACK
2 3 4
7 8

Ⓔ
1 2

1 2
(R/B NO.5)

⑪ BLACK
1 2
3

⑬
2 3 4
5 6

⑭
1 2
3 4
7 8

㉑ BLACK
1 2 3

㉒ BLACK
1 2

⑳
1 2
5 6

㉒
1

⑭
1 3
1 3
