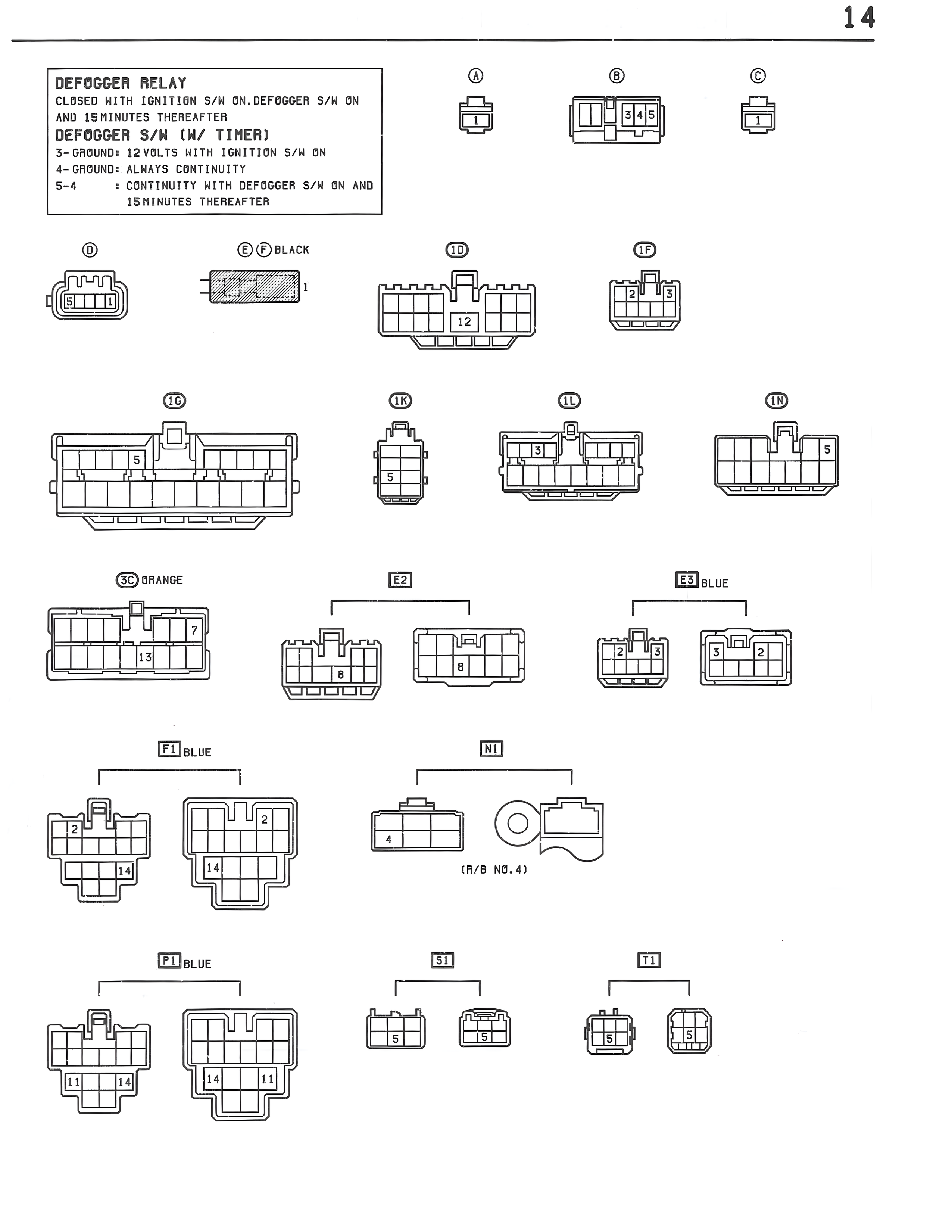

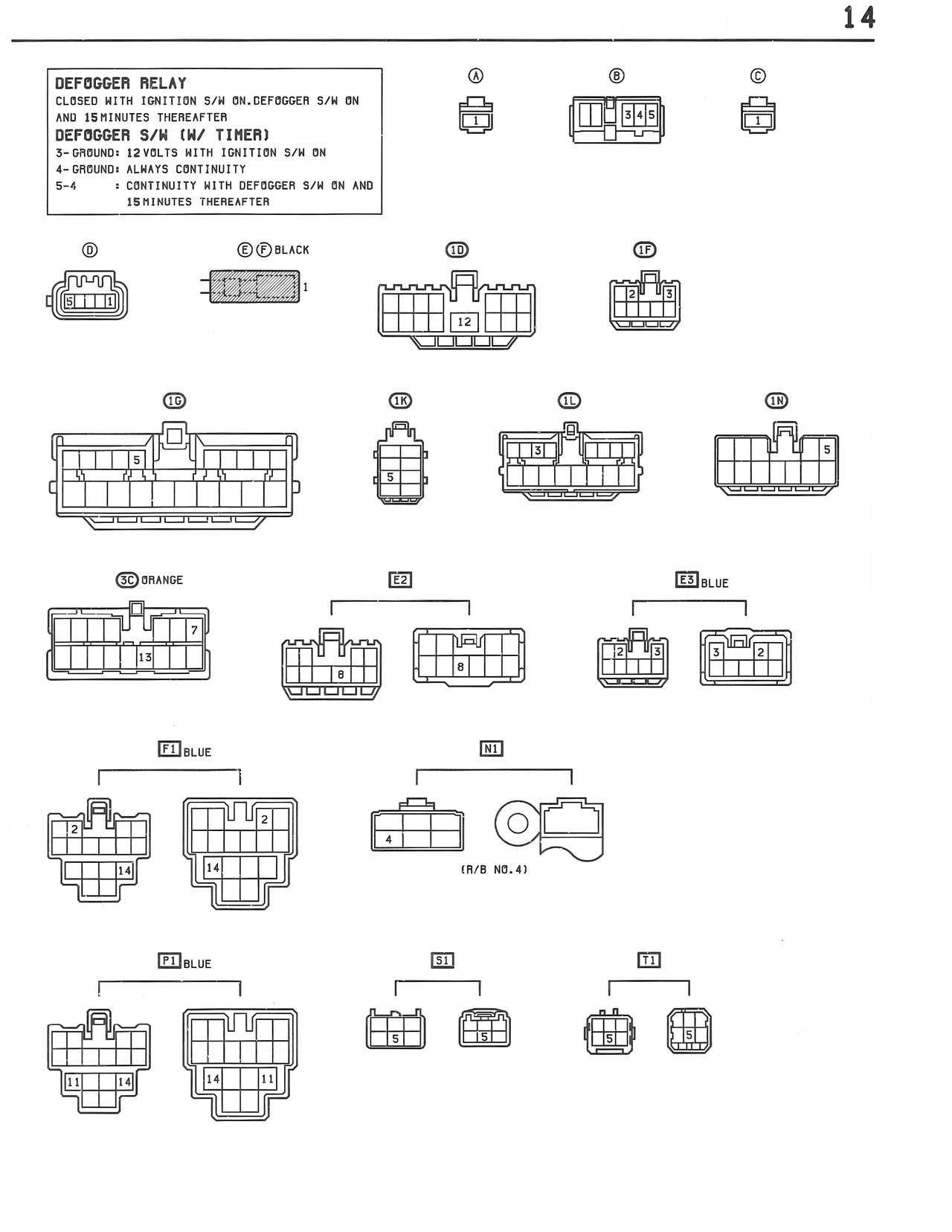

S14/Rear Window Defogger and Mirror Heater, page 2

14

DEFOGGER RELAY
CLOSED WITH IGNITION S/W ON.DEFOGGER S/W ON
AND 15MINUTES THEREAFTER
DEFOGGER S/W (W/ TIMER)
3-GROUND: 12VOLTS WITH IGNITION S/W ON
4-GROUND: ALWAYS CONTINUITY
5-4      : CONTINUITY WITH DEFOGGER S/W ON AND
           15MINUTES THEREAFTER

A
B
C

D
E F BLACK
1D
1F

1G
1K
1L
1N

3C ORANGE
E2
E3 BLUE

F1 BLUE
N1

F1 BLUE
S1
T1
