30

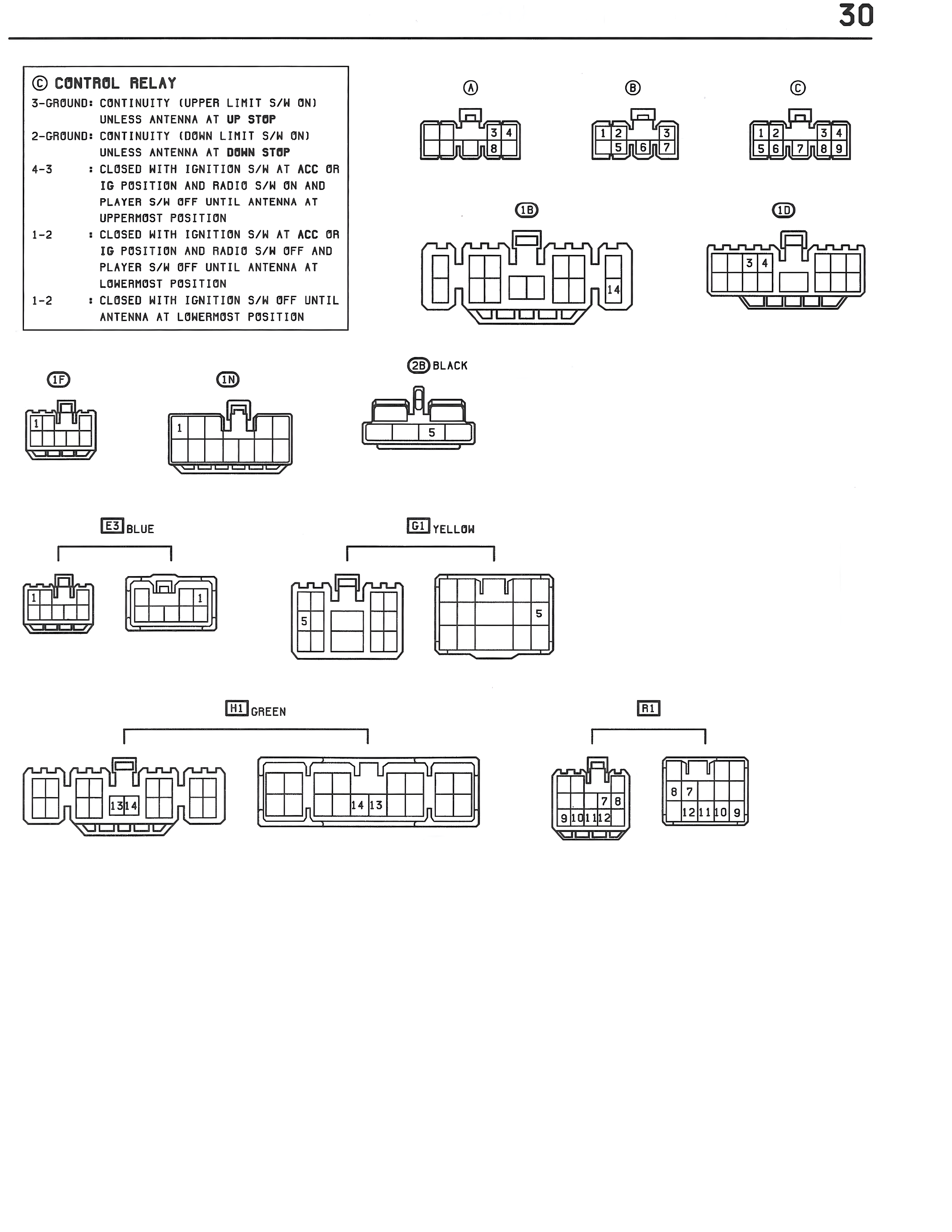

C CONTROL RELAY
3-GROUND: CONTINUITY (UPPER LIMIT S/W ON)
UNLESS ANTENNA AT UP STOP
2-GROUND: CONTINUITY (DOWN LIMIT S/W ON)
UNLESS ANTENNA AT DOWN STOP
4-3 : CLOSED WITH IGNITION S/W AT ACC OR
IG POSITION AND RADIO S/W ON AND
PLAYER S/W OFF UNTIL ANTENNA AT
UPPERMOST POSITION
1-2 : CLOSED WITH IGNITION S/W AT ACC OR
IG POSITION AND RADIO S/W OFF AND
PLAYER S/W OFF UNTIL ANTENNA AT
LOWERMOST POSITION
1-2 : CLOSED WITH IGNITION S/W OFF UNTIL
ANTENNA AT LOWERMOST POSITION
A
3 4
8
B
1 2
5 6 7
C
1 2
5 6 7 8 9
1B
3 4
1D
3 4
1E
1N
1
2D BLACK
5
E3 BLUE
G1 YELLOW
5
5
H1 GREEN
4 3
3 4
R1
7 5
9 8 1 2
6 7
2 1 0 9
