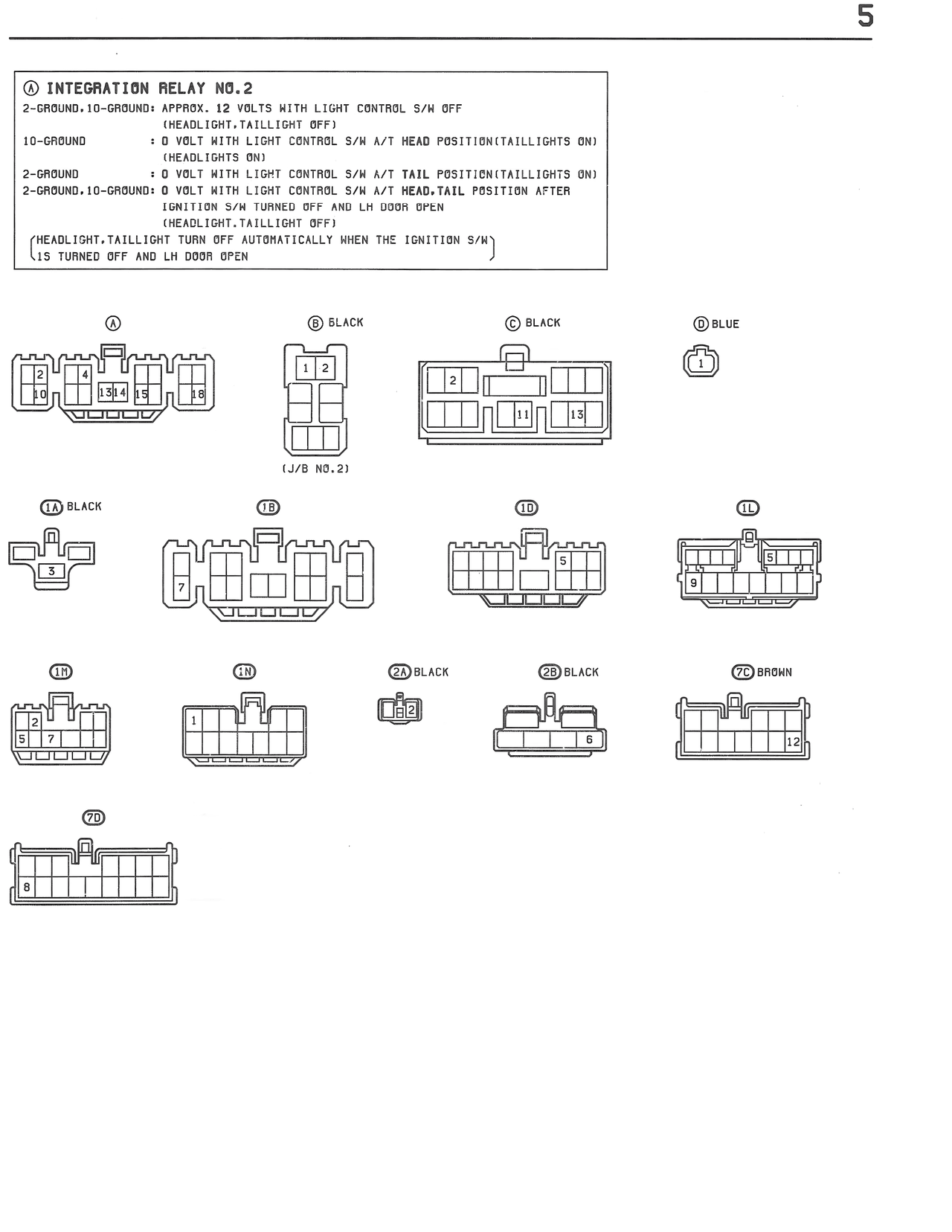

S5/Light Auto Turn Off System, page 2

5

Ⓐ INTEGRATION RELAY NO.2
2-GROUND,10-GROUND: APPROX. 12 VOLTS WITH LIGHT CONTROL S/W OFF
(HEADLIGHT,TAILLIGHT OFF)
10-GROUND : 0 VOLT WITH LIGHT CONTROL S/W A/T HEAD POSITION(TAILLIGHTS ON)
(HEADLIGHTS ON)
2-GROUND : 0 VOLT WITH LIGHT CONTROL S/W A/T TAIL POSITION(TAILLIGHTS ON)
2-GROUND,10-GROUND: 0 VOLT WITH LIGHT CONTROL S/W A/T HEAD,TAIL POSITION AFTER
IGNITION S/W TURNED OFF AND LH DOOR OPEN
(HEADLIGHT,TAILLIGHT OFF)
(HEADLIGHT,TAILLIGHT TURN OFF AUTOMATICALLY WHEN THE IGNITION S/W
IS TURNED OFF AND LH DOOR OPEN

Ⓐ
Ⓑ BLACK
Ⓒ BLACK
ⒹBLUE

[Connector diagrams showing various pin configurations]

(J/B NO.2)

ⒾⒶ BLACK
ⒾⒷ
ⒾⒹ
ⒾⒺ

[Additional connector diagrams]

ⒾⒻ
ⒾⒼ
②Ⓓ BLACK
②Ⓑ BLACK
②Ⓒ BROWN

[More connector diagrams with pin numbers]

②Ⓓ
