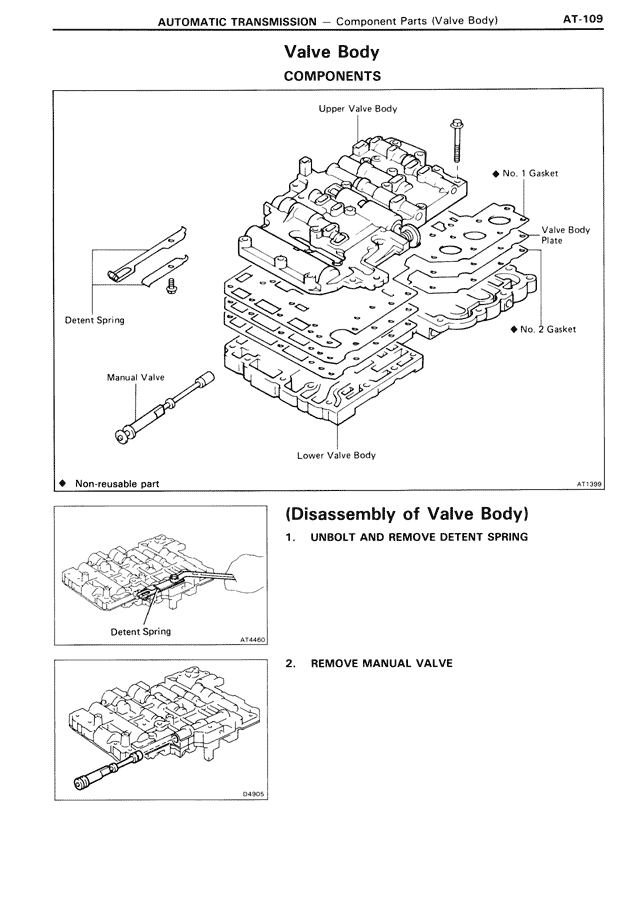

AUTOMATIC TRANSMISSION — Component Parts (Valve Body)     AT-109

Valve Body
COMPONENTS

Upper Valve Body

◆ No. 1 Gasket

Valve Body
Plate

◆ No. 2 Gasket

Detent Spring

Manual Valve

Lower Valve Body

◆ Non-reusable part                                                                                          AT7300

(Disassembly of Valve Body)

1.    UNBOLT AND REMOVE DETENT SPRING

Detent Spring
                                                           AT4460

2.    REMOVE MANUAL VALVE

                                                           D4905
