AUTOMATIC TRANSMISSION — Component Parts (Valve Body) — MK3 Supra Automatic Transmission, page 110
100%

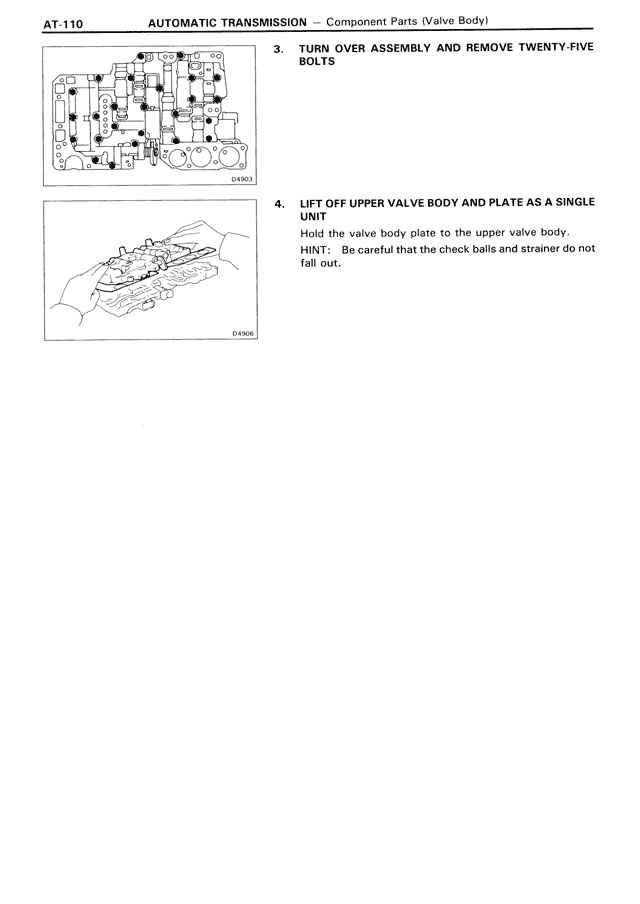

AT-110 AUTOMATIC TRANSMISSION — Component Parts (Valve Body) [Diagram D4903] 3. TURN OVER ASSEMBLY AND REMOVE TWENTY-FIVE BOLTS [Diagram D4904] 4. LIFT OFF UPPER VALVE BODY AND PLATE AS A SINGLE UNIT Hold the valve body plate to the upper valve body. HINT: Be careful that the check balls and strainer do not fall out.
