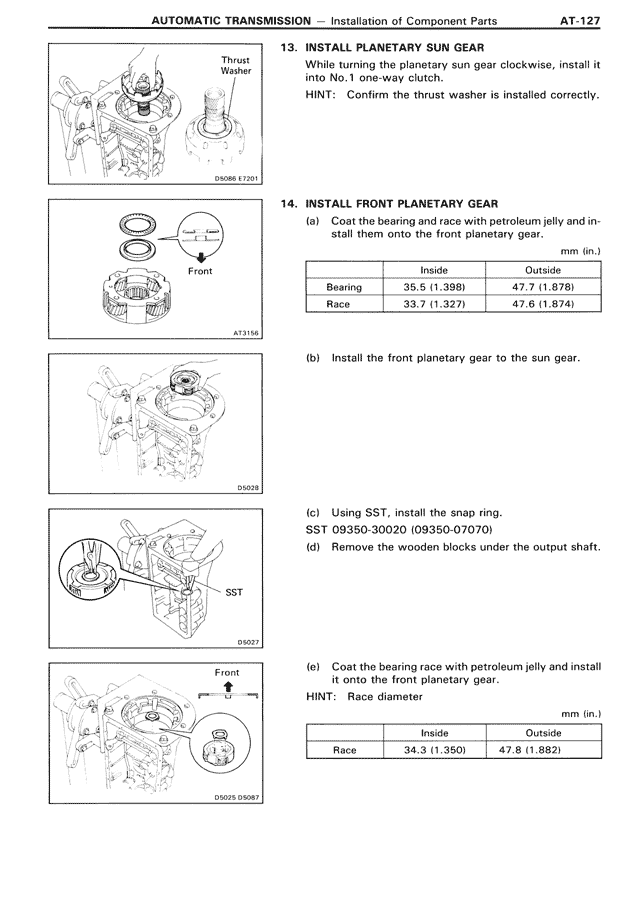

13. INSTALL PLANETARY SUN GEAR
While turning the planetary sun gear clockwise, install it into No.1 one way clutch.
HINT: Confirm the thrust washer is installed correctly.
14. INSTALL FRONT PLANETARY GEAR
(a) Coat bearing and race with petroleum jelly and install them onto the front planetary gear.
mm (in.)
Inside Outside
Bearing 35.6 (1.398) 47.7 (1.878)
Race 33.7 (1.327) 47.6 (1.874)
(b) Install the front planetary gear to the sun gear.
(c) Using SST, install the snap ring.
SST 09350-30020 (09350-07070)
(d) Remove the wooden blocks under the output shaft.
(e) Coat the bearing race with petroleum jelly and install it onto the front planetary gear.
HINT: Race diameter
mm (in.)
Inside Outside
Race 34.3 (1.350) 47.8 (1.882)
