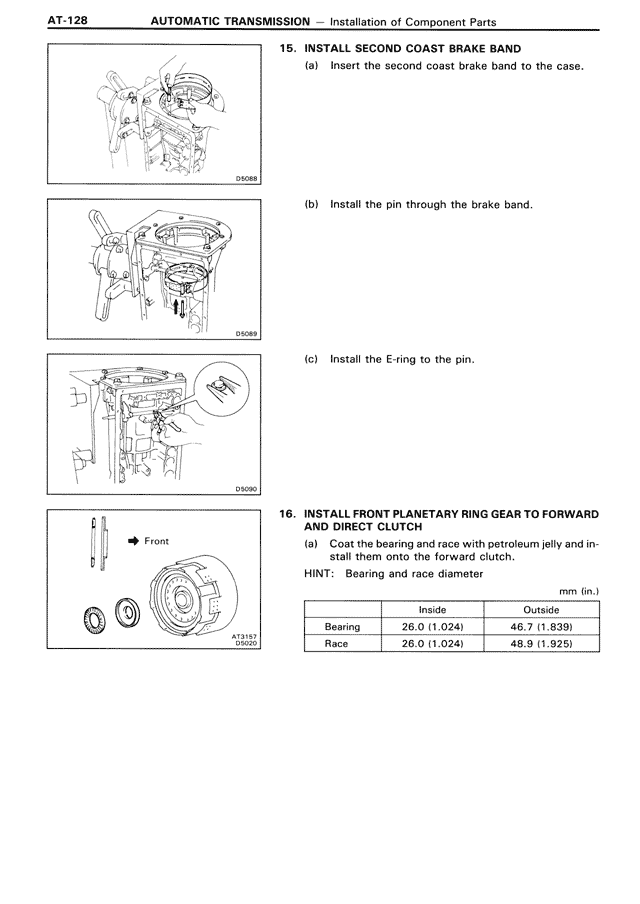

15. INSTALL SECOND COAST BRAKE BAND
(a) Insert the second coast brake band to the case.
(b) Install the pin through the brake band.
(c) Install the E-ring to the pin.
16. INSTALL FRONT PLANETARY RING GEAR TO FORWARD AND DIRECT CLUTCH
(a) Coat the bearing and race with petroleum jelly and install them onto the forward clutch.
HINT: Bearing and race diameter
mm (in.)
Inside Outside
Bearing 26.0 (1.024) 46.7 (1.839)
Race 26.0 (1.024) 48.9 (1.925)
