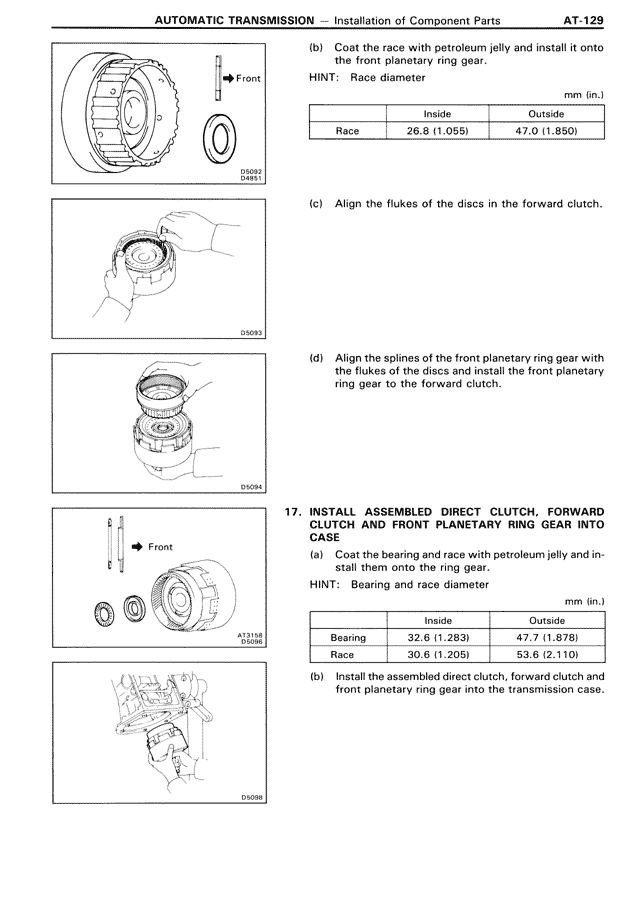

AUTOMATIC TRANSMISSION — Installation of Component Parts AT-129
(b) Coat the race with petroleum jelly and install it onto
the front planetary ring gear.
HINT: Race diameter
mm (in.)
Inside Outside
Race 26.8 (1.055) 47.0 (1.850)
(c) Align the flukes of the discs in the forward clutch.
(d) Align the splines of the front planetary ring gear with
the flukes of the discs and install the front planetary
ring gear to the forward clutch.
17. INSTALL ASSEMBLED DIRECT CLUTCH, FORWARD
CLUTCH AND FRONT PLANETARY RING GEAR INTO
CASE
(a) Coat the bearing and race with petroleum jelly and in-
stall them onto the ring gear.
HINT: Bearing and race diameter
mm (in.)
Inside Outside
Bearing 32.6 (1.283) 47.7 (1.878)
Race 30.6 (1.205) 53.6 (2.110)
(b) Install the assembled direct clutch, forward clutch and
front planetary ring gear into the transmission case.
