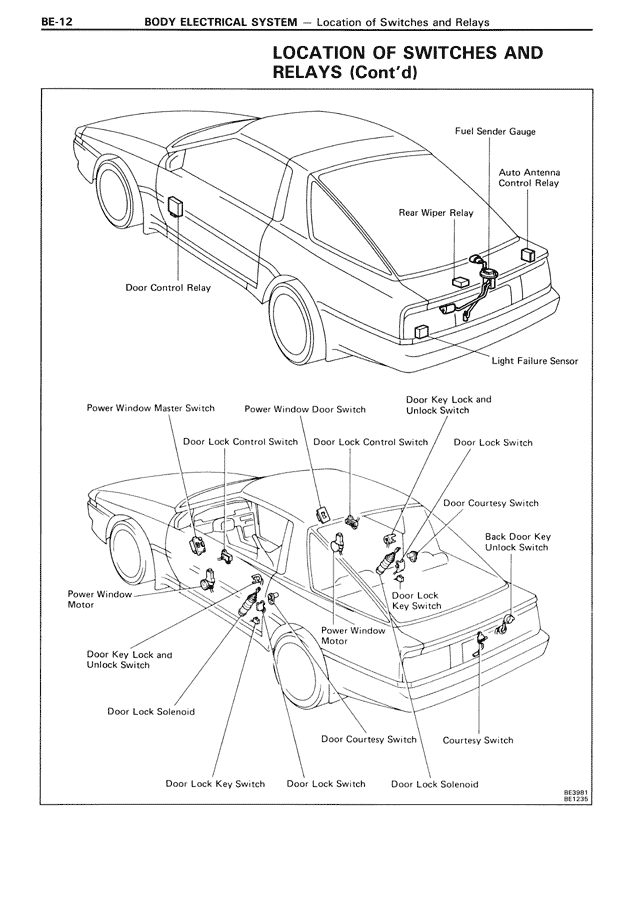

BE-12 BODY ELECTRICAL SYSTEM — Location of Switches and Relays LOCATION OF SWITCHES AND RELAYS (Cont'd) [TOP DIAGRAM LABELS - Reading from visible labels on car exterior view:] Fuel Sender Gauge Auto Antenna Control Relay Rear Wiper Relay Light Failure Sensor [BOTTOM DIAGRAM LABELS - Reading from visible labels on car interior door view:] Power Window Master Switch Power Window Door Switch Door Control Relay Door Lock Control Switch Door Lock Control Switch Door Key Lock and Unlock Switch Door Lock Switch Door Courtesy Switch Back Door Key Unlock Switch Power Window Motor Door Key Lock and Unlock Switch Door Lock Key Switch Door Lock Solenoid Power Window Motor Door Lock Key Switch Door Lock Switch Door Lock Solenoid Door Courtesy Switch Courtesy Switch BE3991 BE1286
