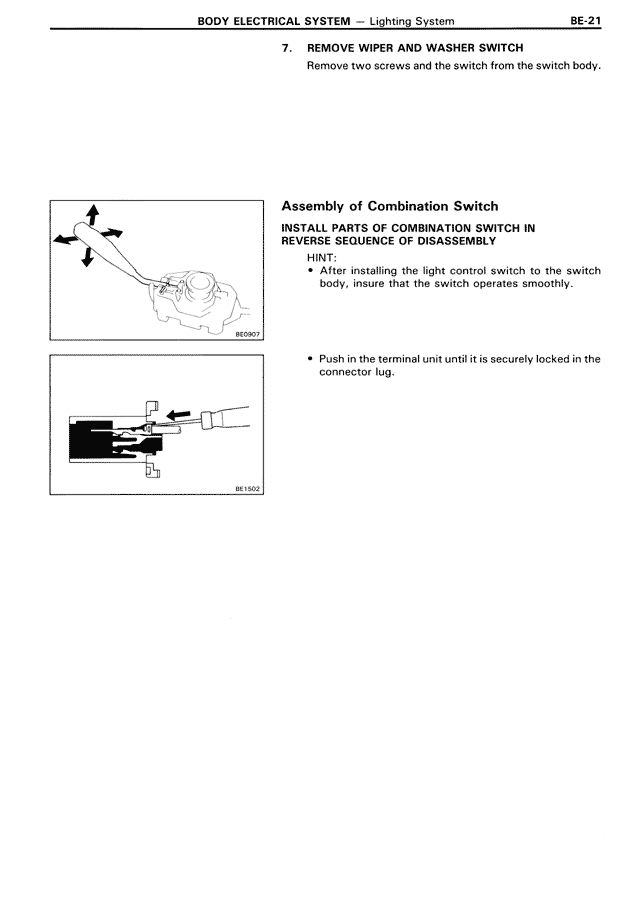

REMOVE WIPER AND WASHER SWITCH — MK3 Supra Body Electrical System, page 21
100%
7. REMOVE WIPER AND WASHER SWITCH Remove two screws and the switch from the switch body. Assembly of Combination Switch INSTALL PARTS OF COMBINATION SWITCH IN REVERSE SEQUENCE OF DISASSEMBLY HINT: • After installing the light control switch to the switch body, insure that the switch operates smoothly. • Push in the terminal unit until it is securely locked in the connector lug.
