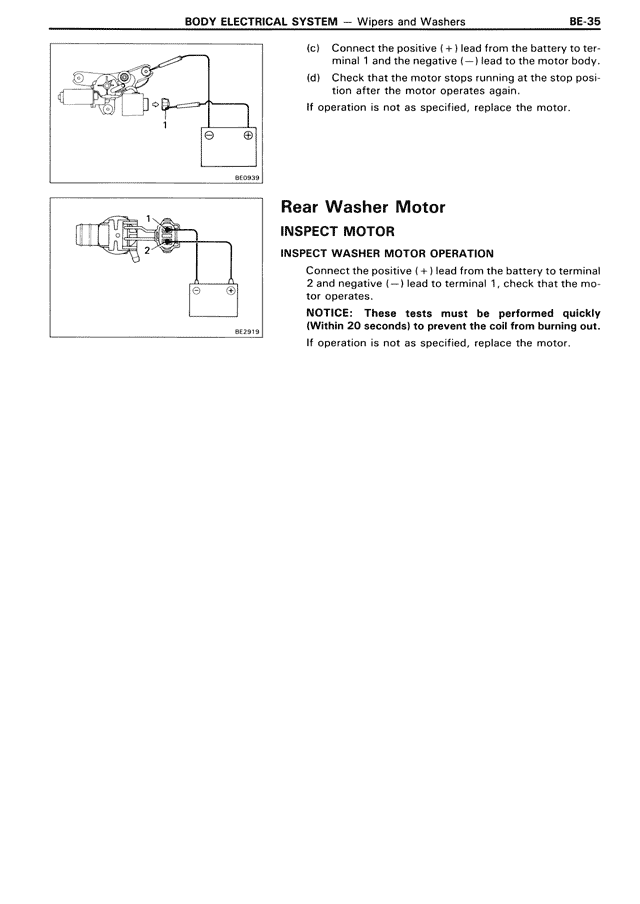

BODY ELECTRICAL SYSTEM — Wipers and Washers BE-35
(c) Connect the positive (+) lead from the battery to terminal 1 and the negative (—) lead to the motor body.
(d) Check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
Rear Washer Motor
INSPECT MOTOR
INSPECT WASHER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 2 and negative (—) lead to terminal 1, check that the motor operates.
NOTICE: These tests must be performed quickly (Within 20 seconds) to prevent the coil from burning out.
If operation is not as specified, replace the motor.
