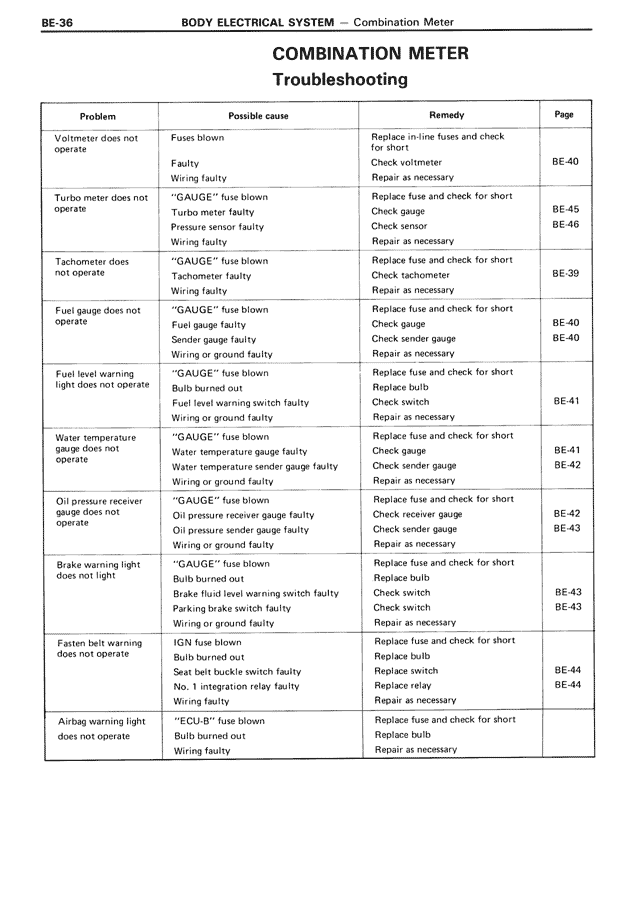

COMBINATION METER
Troubleshooting
Problem | Possible cause | Remedy | Page
Voltmeter does not operate | Fuses blown | Replace in-line fuses and check for short | BE-40
| Faulty | Check voltmeter |
| Wiring faulty | Repair as necessary |
Turbo meter does not operate | "GAUGE" fuse blown | Replace fuse and check for short | BE-45
| Turbo meter faulty | Check gauge |
| Pressure sensor faulty | Check sensor | BE-46
| Wiring faulty | Repair as necessary |
Tachometer does not operate | "GAUGE" fuse blown | Replace fuse and check for short | BE-39
| Tachometer faulty | Check tachometer |
| Wiring faulty | Repair as necessary |
Fuel gauge does not operate | "GAUGE" fuse blown | Replace fuse and check for short | BE-40
| Fuel gauge faulty | Check gauge |
| Sender gauge faulty | Check sender gauge | BE-40
| Wiring or ground faulty | Repair as necessary |
Fuel level warning light does not operate | "GAUGE" fuse blown | Replace fuse and check for short |
| Bulb burned out | Replace bulb |
| Fuel level warning switch faulty | Check switch | BE-41
| Wiring or ground faulty | Repair as necessary |
Water temperature gauge does not operate | "GAUGE" fuse blown | Replace fuse and check for short |
| Water temperature gauge faulty | Check gauge | BE-41
| Water temperature sender gauge faulty | Check sender gauge | BE-42
| Wiring or ground faulty | Repair as necessary |
Oil pressure receiver gauge does not operate | "GAUGE" fuse blown | Replace fuse and check for short |
| Oil pressure receiver gauge faulty | Check receiver gauge | BE-42
| Oil pressure sender gauge faulty | Check sender gauge | BE-43
| Wiring or ground faulty | Repair as necessary |
Brake warning light does not operate | "GAUGE" fuse blown | Replace fuse and check for short |
| Bulb burned out | Replace bulb |
| Brake fluid level warning switch faulty | Check switch | BE-43
| Parking brake switch faulty | Check switch | BE-43
| Wiring or ground faulty | Repair as necessary |
Fasten belt warning does not operate | IGN fuse blown | Replace fuse and check for short |
| Bulb burned out | Replace bulb |
| Seat belt buckle switch faulty | Replace switch | BE-44
| No. 1 integration relay faulty | Replace relay | BE-44
| Wiring faulty | Repair as necessary |
Airbag warning light does not operate | "ECU-B" fuse blown | Replace fuse and check for short |
| Bulb burned out | Replace bulb |
| Wiring faulty | Repair as necessary |
