BR-54
BRAKE SYSTEM — Anti-lock Brake System (A.B.S.)

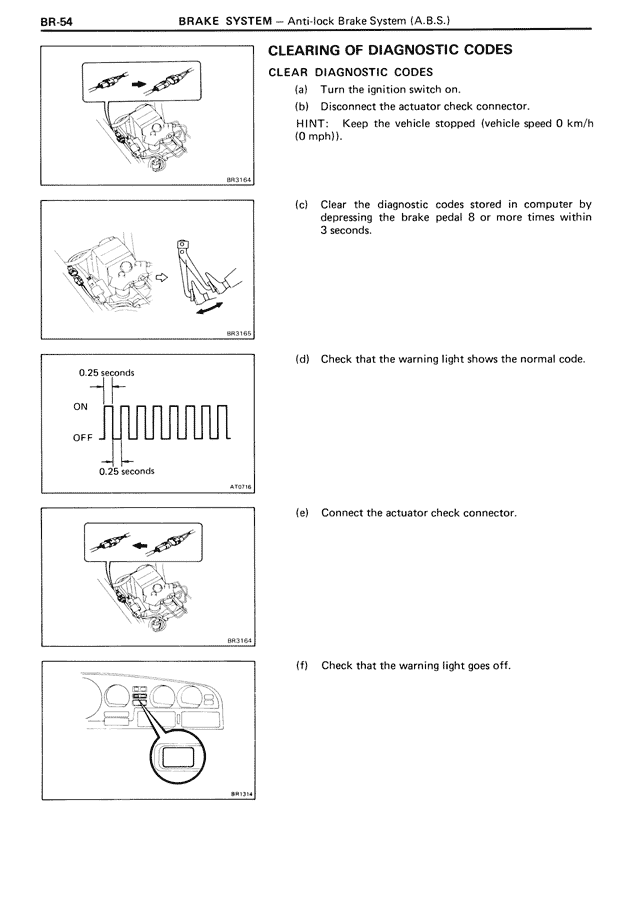

CLEARING OF DIAGNOSTIC CODES
CLEAR DIAGNOSTIC CODES
(a) Turn the ignition switch on.
(b) Disconnect the actuator check connector.
HINT: Keep the vehicle stopped (vehicle speed 0 km/h (0 mph)).
(c) Clear the diagnostic codes stored in computer by depressing the brake pedal 8 or more times within 3 seconds.
(d) Check that the warning light shows the normal code.
0.25 seconds
ON
OFF
0.25 seconds
(e) Connect the actuator check connector.
(f) Check that the warning light goes off.
