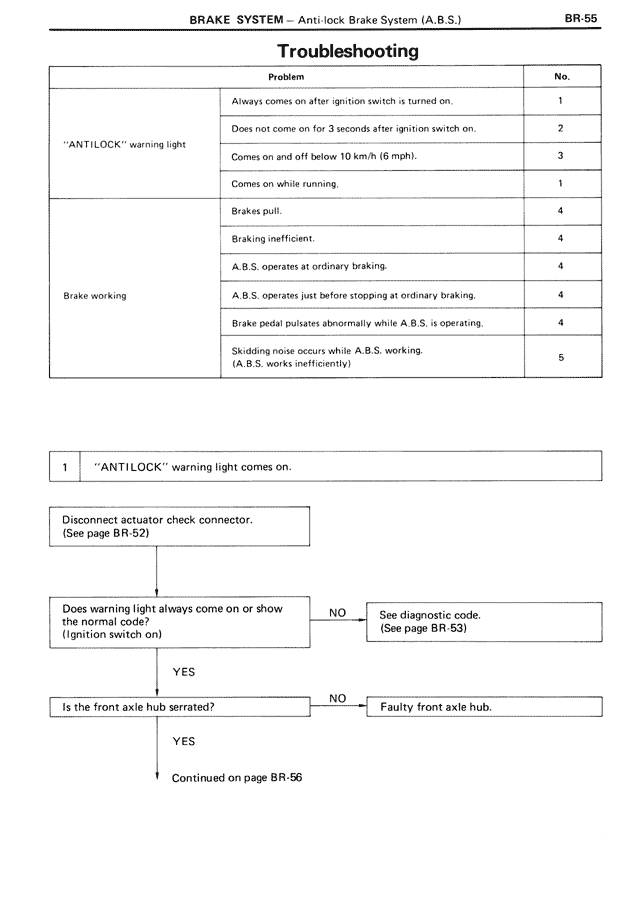

BRAKE SYSTEM — Anti-lock Brake System (A.B.S.) BR-55
Troubleshooting
Problem No.
"ANTILOCK" warning light
Always comes on after ignition switch is turned on. 1
Does not come on for 3 seconds after ignition switch on. 2
Comes on and off below 10 km/h (6 mph). 3
Comes on while running. 1
Brake working
Brakes pull. 4
Braking inefficient. 4
A.B.S. operates at ordinary braking. 4
A.B.S. operates just before stopping at ordinary braking. 4
Brake pedal pulsates abnormally while A.B.S. is operating. 4
Skidding noise occurs while A.B.S. working.
(A.B.S. works inefficiently) 5
1 "ANTILOCK" warning light comes on.
Disconnect actuator check connector.
(See page BR-52)
Does warning light always come on or show NO See diagnostic code.
the normal code? (See page BR-53)
(Ignition switch on)
YES
Is the front axle hub serrated? NO Faulty front axle hub.
YES
Continued on page BR-56
