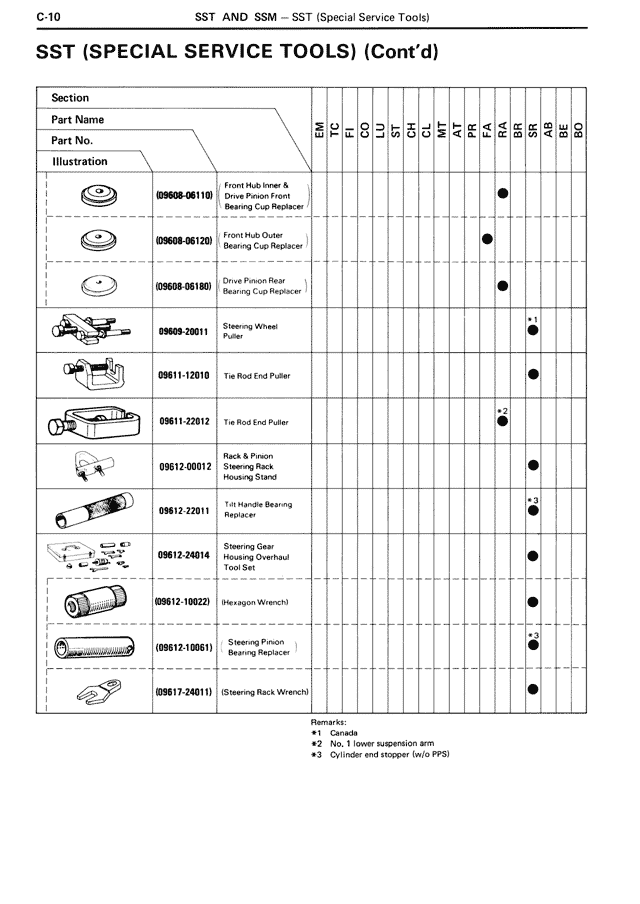

SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09606-06110
Front Hub Inner & Drive Pinion Front Bearing Cup Replacer
09608-06120
Front Hub Outer Bearing Cup Replacer
09608-06180
Drive Pinion Rear Bearing Cup Replacer
09609-20011
Steering Wheel Puller
09611-12010
Tie Rod End Puller
09611-22012
Tie Rod End Puller
09612-00012
Rack & Pinion Steering Rack Housing Stand
09612-22011
1st Handle Bearing Installer
09612-24014
Steering Gear Housing Overhaul Tool Set
09612-10022
(Hexagon Wrench)
(09612-10601)
Steering Pinion Bearing Replacer
09617-24011
(Steering Rack Wrench)
Remarks:
*1 Canada
*2 No. 1 lower suspension arm
*3 Cylinder end stopper (w/o PPS)
