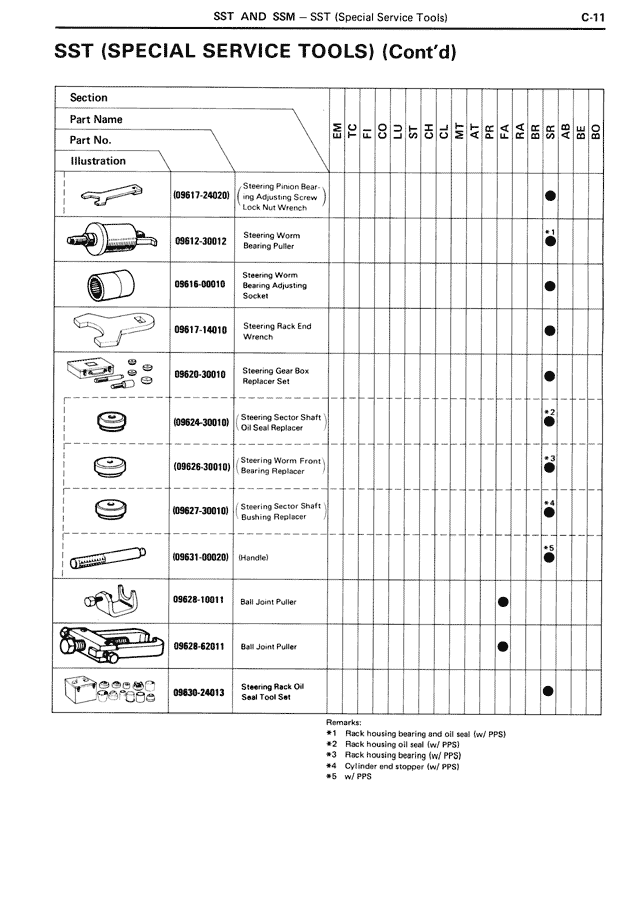

SST (SPECIAL SERVICE TOOLS) (Cont'd) — MK3 Supra SST & SSM, page 11
100%
SST (SPECIAL SERVICE TOOLS) (Cont'd) Section Part Name Part No. Illustration 09617-24020 | Steering Pinion Bearing Adjusting Screw Lock Nut Wrench | BE 09612-30012 | Steering Worm Bearing Puller | BE 09616-00010 | Steering Worm Bearing Adjusting Socket | BE 09617-14010 | Steering Rack End Wrench | BE 09620-30010 | Steering Gear Box Replacer | BE 09624-30010 | Steering Sector Shaft Oil Seal Replacer | BE 09626-30010 | Steering Worm Front Bearing Replacer | BE 09627-30010 | Steering Sector Shaft Bushing Replacer | BE 09631-00020 | (Handle) | BE 09628-10011 | Ball Joint Puller | AT 09628-62011 | Ball Joint Puller | AT 09630-24013 | Steering Rack Oil Seal Tool Set | BE Remarks: *1 Rack housing bearing end oil seal (w/ PPS) *2 Rack housing oil seal (w/ PPS) *3 Cylinder end bearing (w/ PPS) *4 Cylinder end stopper (w/ PPS) *5 w/ PPS
