C/SST & SSM — SST (Special Service Tools) (Cont'd), page 9

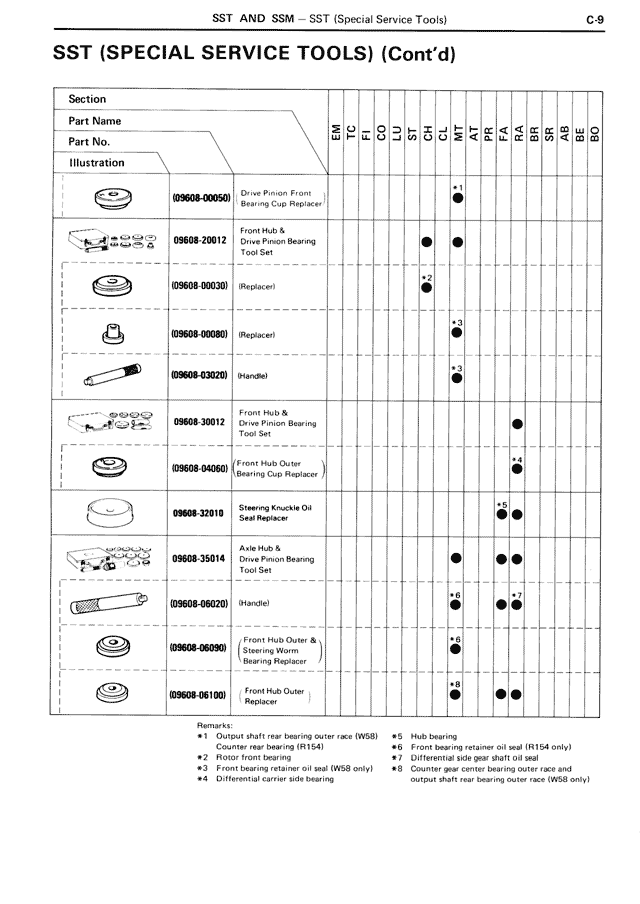

SST AND SSM — SST (Special Service Tools)                                C-9

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09608-00050    Drive Pinion Front Bearing Cup Replacer
09608-20012    Front Hub & Drive Pinion Bearing Tool Set
09608-00030    (Replacer)
09608-00060    (Replacer)
09608-03020    (Handle)
09608-30012    Front Hub & Drive Pinion Bearing Tool Set
09608-04060    Front Hub Outer Bearing Cup Replacer
09608-32010    Steering Knuckle Oil Seal Replacer
09608-35014    Axle Hub & Drive Pinion Bearing Tool Set
09608-06020    (Handle)
09608-06090    Front Hub Outer & Steering Worm Bearing Replacer
09608-08100    Front Hub Outer Replacer

Remarks:
*1  Output shaft rear bearing outer race (W58) Counter rear bearing (R154)
*2  Pinion front bearing
*3  Front bearing retainer oil seal (W58 only)
*4  Differential carrier side bearing
*5  Hub bearing
*6  Front bearing retainer oil seal (R154 only)
*7  Differential side gear shaft oil seal
*8  Counter gear center bearing outer race and Output shaft rear bearing outer race (W58 only)
