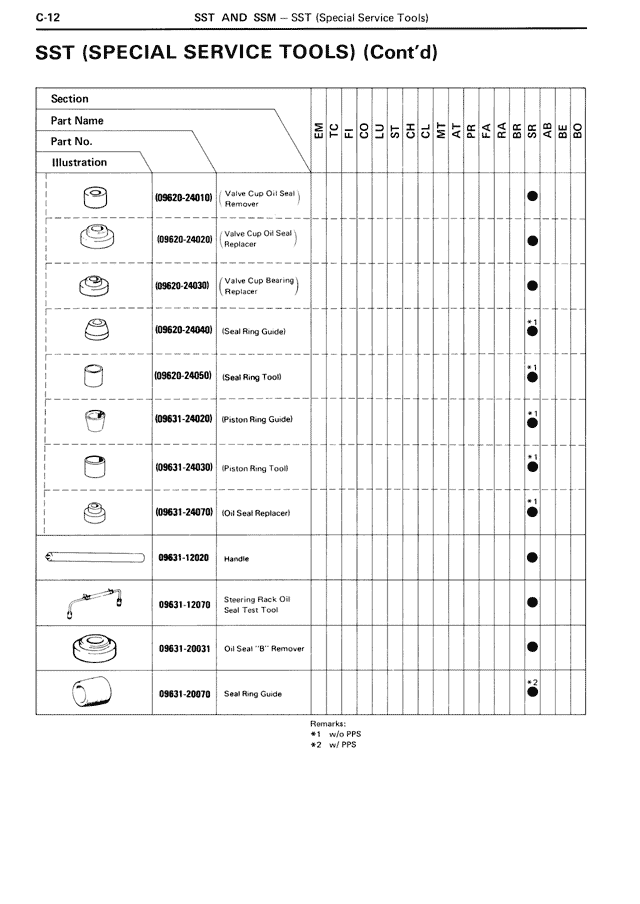

SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09620-24010 | Valve Cup Oil Seal Remover | EM TC FE CO LT ST CH CL WT AT PR CR RA SI SR AB AC BO | •
09620-24020 | Valve Cup Oil Seal Replacer | •
09620-24030 | Valve Cup Bushing Replacer | •
09620-24040 | (Seal Ring Guide) | *2
09620-24050 | (Seal Ring Tool) | •
09631-24020 | (Piston Ring Guide) | •
09631-24030 | (Piston Ring Tool) | •
09631-24070 | (Oil Seal Replacer) | •
09631-12020 | Handle | •
09631-12070 | Steering Rack Oil Seal Test Tool | •
09631-20031 | Oil Seal "B" Remover | •
09631-20070 | Seal Ring Guide | *2
Remarks:
*1 w/o PPS
*2 w/ PPS
