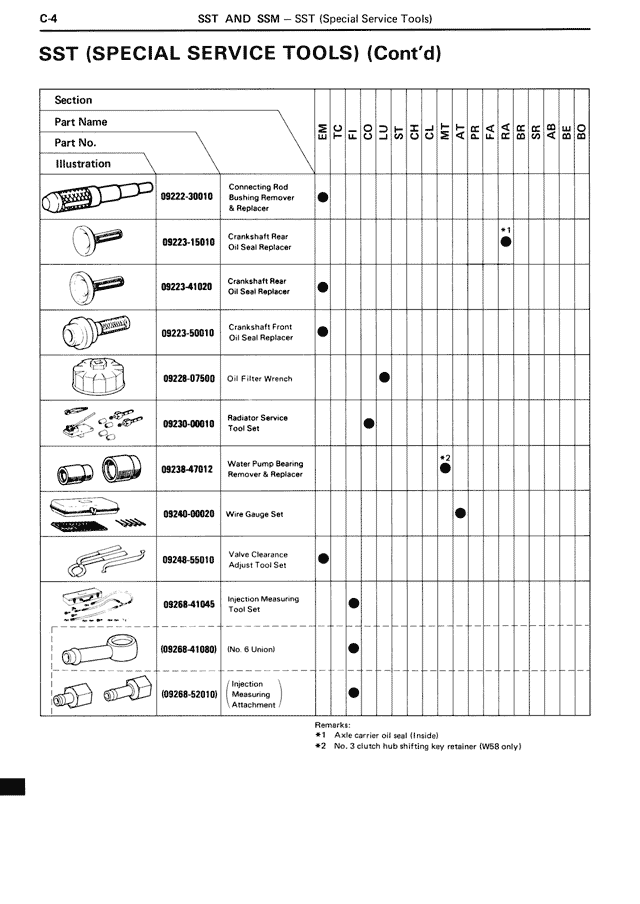

C/SST & SSM — SST (Special Service Tools) (Cont'd), page 4

C-4
SST AND SSM — SST (Special Service Tools)

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Part Name
Part No.
Illustration

09223-30010
Connecting Rod Bushing Remover & Replacer
●

09223-15010
Crankshaft Rear Oil Seal Replacer
●3

09223-41020
Crankshaft Rear Oil Seal Replacer
●

09223-50010
Crankshaft Front Oil Seal Replacer
●

09228-07500
Oil Filter Wrench
●

09230-00010
Radiator Service Tool Set
●

09238-47012
Water Pump Bearing Remover & Replacer
●2

09240-00020
Wire Gauge Set
●

09248-55010
Valve Clearance Adjust Tool Set
●

09268-41045
Injection Measuring Tool Set
●

09268-41080
(No. 6 Unused)
●

09268-52010
Injection Measuring Attachment
●

Remarks
●1 Axle carrier oil seal (Inside)
●2 No. 3 clutch hub shifting key retainer (W68 only)
