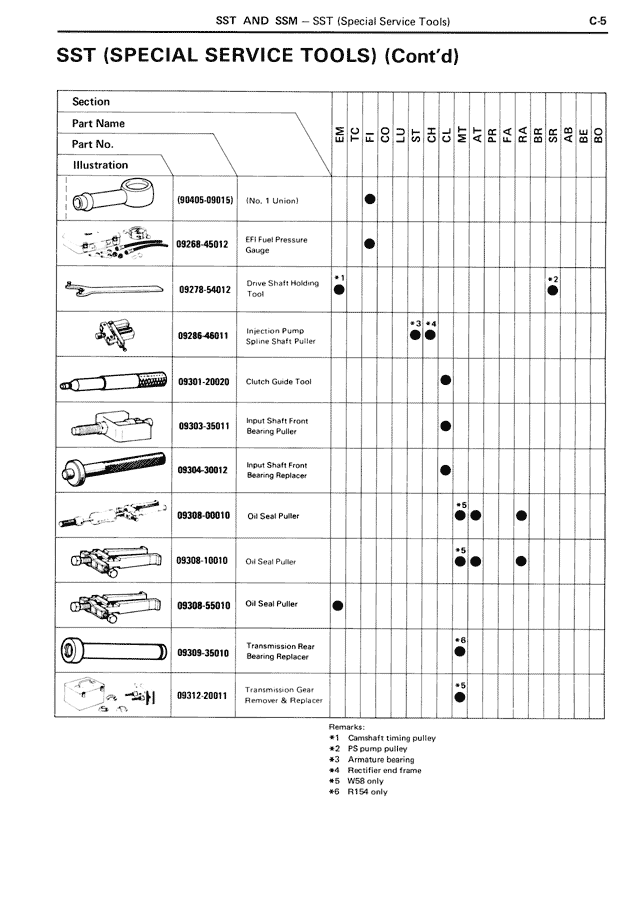

SST (SPECIAL SERVICE TOOLS) (Cont'd) — MK3 Supra SST & SSM, page 5
100%
SST AND SSM — SST (Special Service Tools) SST (SPECIAL SERVICE TOOLS) (Cont'd) Section Part Name Part No. Illustration 09405-09015 | (No. 1 Union) | ● 09268-45012 | FI1 Fuel Pressure Gauge | ● 09278-54012 | Drive Shaft Holding Tool | ●*1 | ●*2 09268-46011 | Injection Pump Spline Shaft Puller | ●*3 *4 09301-20020 | Clutch Guide Tool | ● 09303-35011 | Input Shaft Front Bearing Puller | ● 09304-30012 | Input Shaft Front Bearing Replacer | ● 09308-00010 | Oil Seal Puller | ●*5 ● | ● 09308-10010 | Oil Seal Puller | ●*5 ●● | ● 09308-55010 | Oil Seal Puller | ● 09309-35010 | Transmission Rear Bearing Replacer | *6 ● 09312-20011 | Transmission Gear Remover & Replacer | *5 ● Notes: *1 Camshaft timing pulley *2 PS pump pulley *3 Armature bearing *4 Faceplate and frame *5 R150 only *6 R154 only
