C-6

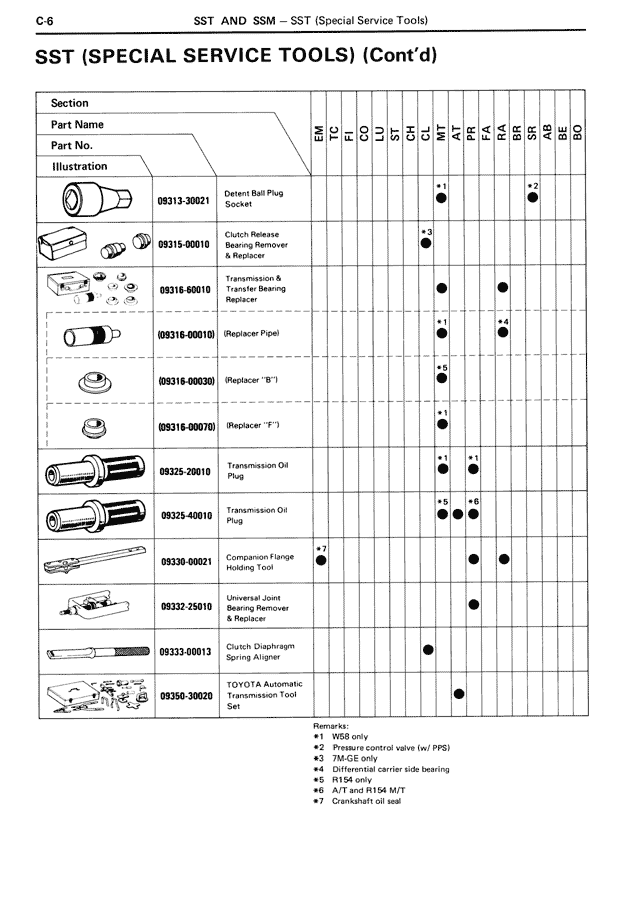

SST AND SSM — SST (Special Service Tools)
SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09313-30021
Dental Ball Plug Socket
09315-00010
Clutch Release Bearing Remover & Replacer
09316-60010
Transmission & Transfer Bearing Replacer
09316-00010
/Replacer Pipe/
09316-00030
/Replacer "B"/
09316-00070
/Replacer "F"/
09325-20010
Transmission Oil Plug
09325-40010
Transmission Oil Plug
09330-00021
Companion Flange Holding Tool
09322-25010
Universal Joint Bearing Remover & Replacer
09333-00013
Clutch Diaphragm Spring Aligner
09350-30020
TOYOTA Automatic Transmission Tool Set
Remarks:
*1 W66 only
*2 Pressure control valve (w/ PPS)
*3 7M-GE only
*4 Differential carrier side bearing
*5 Oil seal
*6 A/T and R154 M/T
*7 Crankshaft oil seal
