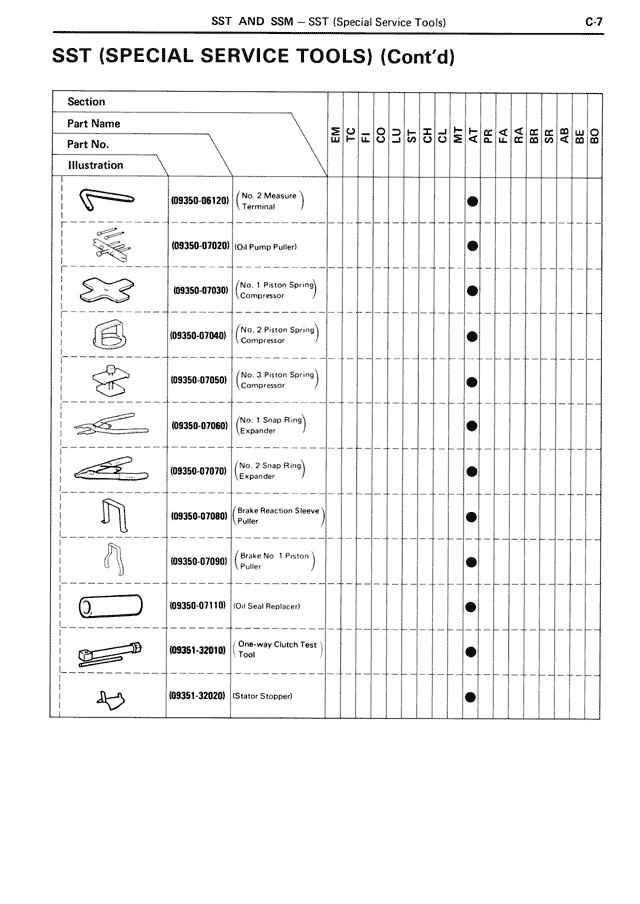

SST AND SSM — SST (Special Service Tools) C-7
SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration EM FI CO AT SH DI CL AT FC FA PA BR SR AR BE BO
09350-06120 (No. 2 Measure)
Terminal •
09350-07020 (Oil Pump Puller) •
09350-07030 (No. 1 Piston Spring)
Compressor •
09350-07040 (No. 2 Piston Spring)
Compressor •
09350-07050 (No. 3 Piston Spring)
Compressor •
09350-07060 (No. 1 Snap Ring)
Expander •
09350-07070 (No. 2 Snap Ring)
Expander •
09350-07080 (Brake Reaction Sleeve)
Over •
09350-07090 (Brake No. 1 Piston)
Puller •
09350-07110 (Oil Seal Replacer) •
09351-32010 One-way Clutch Test
Tool •
09351-32020 (Stator Stopper) •
