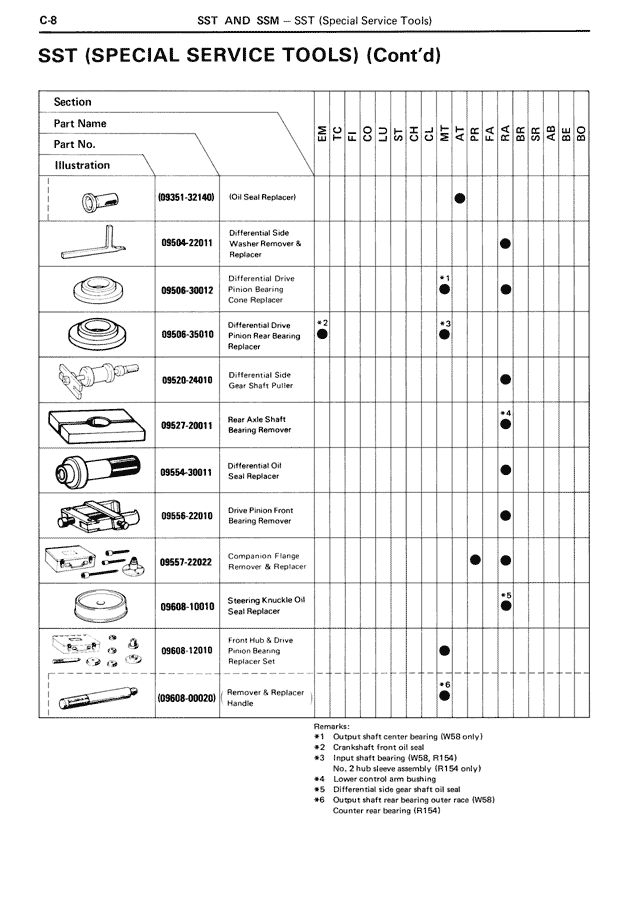

C-8
SST AND SSM - SST (Special Service Tools)
SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Part Name
Part No.
Illustration
09351-32140
(Oil Seal Replacer)
09504-22011
Differential Side Washer Remover & Replacer
09506-30012
Differential Drive Pinion Bearing Cone Replacer
09506-35010
Differential Drive Pinion Rear Bearing Replacer
*2
*3
09520-24010
Differential Side Gear Shaft Puller
09527-20011
Rear Axle Shaft Bearing Remover
*4
09554-30011
Differential Oil Seal Replacer
09556-22010
Drive Pinion Front Bearing Remover
09557-22022
Companion Flange Remover & Replacer
09608-10010
Steering Knuckle Oil Seal Replacer
*5
09608-12010
Front Hub & Drive Pinion Bearing Replacer Set
09608-00020
Remover & Replacer Handle
*6
Remarks
*1 Output shaft center bearing (W58 only)
*2 Crankshaft front oil seal
*3 Input shaft bearing (W58, R154)
(60, 2 hub sleeve assembly (R154 only)
*4 Rear axle shaft bearing oil seal
*5 Differential side gear shaft oil seal
*6 Output shaft rear bearing outer race (W58)
Counter rear bearing (R154)
