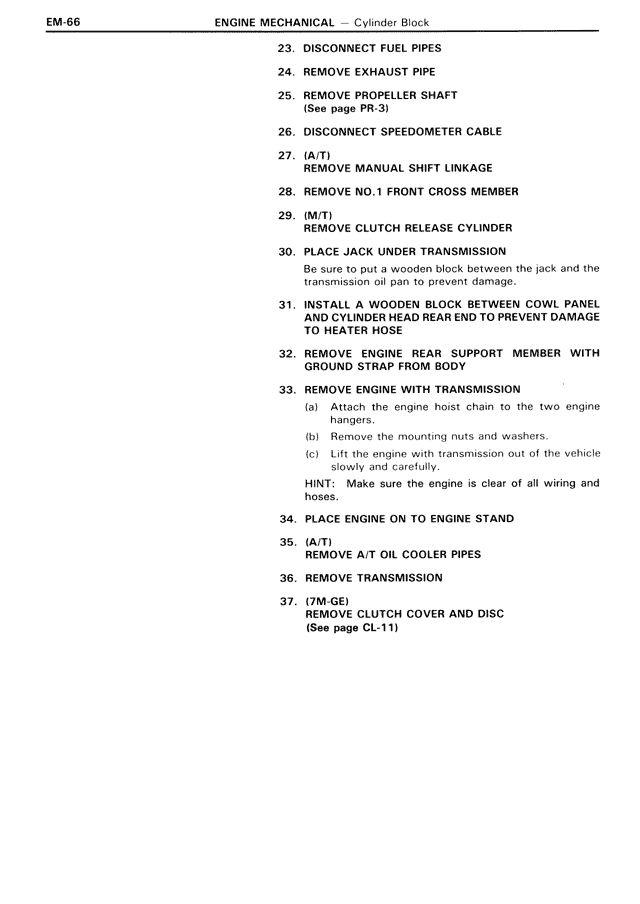

23. DISCONNECT FUEL PIPES
24. REMOVE EXHAUST PIPE
25. REMOVE PROPELLER SHAFT
(See page PR-3)
26. DISCONNECT SPEEDOMETER CABLE
27. (A/T)
REMOVE MANUAL SHIFT LINKAGE
28. REMOVE NO.1 FRONT CROSS MEMBER
29. (M/T)
REMOVE CLUTCH RELEASE CYLINDER
30. PLACE JACK UNDER TRANSMISSION
Be sure to put a wooden block between the jack and the
transmission oil pan to prevent damage.
31. INSTALL A WOODEN BLOCK BETWEEN COWL PANEL
AND CYLINDER HEAD REAR END TO PREVENT DAMAGE
TO HEATER HOSE
32. REMOVE ENGINE REAR SUPPORT MEMBER WITH
GROUND STRAP FROM BODY
33. REMOVE ENGINE WITH TRANSMISSION
(a) Attach the engine hoist chain to the two engine
hangers.
(b) Remove the mounting nuts and washers.
(c) Lift the engine with transmission out of the vehicle
slowly and carefully.
HINT: Make sure the engine is clear of all wiring and
hoses.
34. PLACE ENGINE ON TO ENGINE STAND
35. (A/T)
REMOVE A/T OIL COOLER PIPES
36. REMOVE TRANSMISSION
37. (7M-GE)
REMOVE CLUTCH COVER AND DISC
(See page CL-11)
