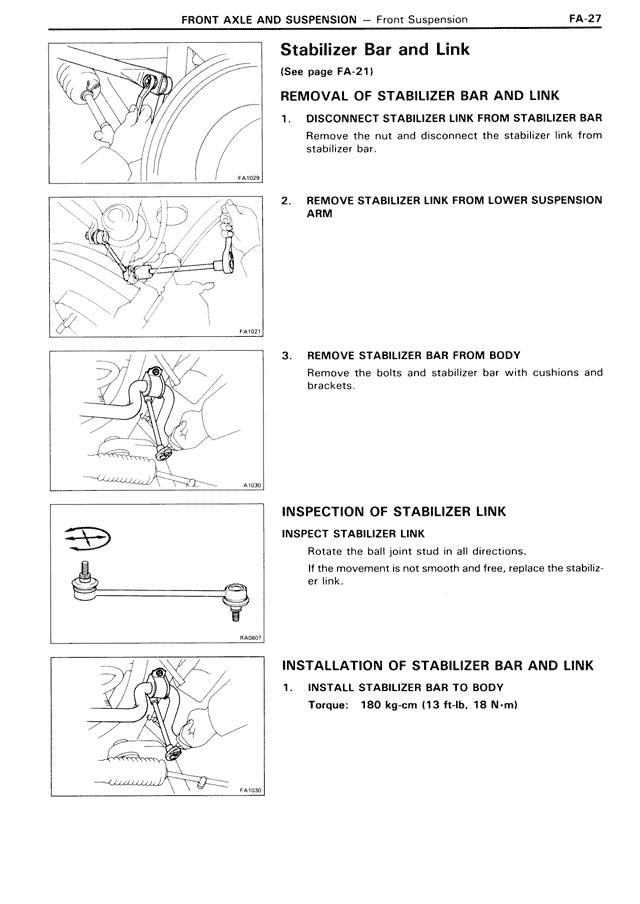

Stabilizer Bar and Link
(See page FA-21)
REMOVAL OF STABILIZER BAR AND LINK
1. DISCONNECT STABILIZER LINK FROM STABILIZER BAR
Remove the nut and disconnect the stabilizer link from stabilizer bar.
2. REMOVE STABILIZER LINK FROM LOWER SUSPENSION ARM
3. REMOVE STABILIZER BAR FROM BODY
Remove the bolts and stabilizer bar with cushions and brackets.
INSPECTION OF STABILIZER LINK
INSPECT STABILIZER LINK
Rotate the ball joint stud in all directions.
If the movement is not smooth and free, replace the stabilizer link.
INSTALLATION OF STABILIZER BAR AND LINK
1. INSTALL STABILIZER BAR TO BODY
Torque: 180 kg-cm (13 ft-lb, 18 N-m)
