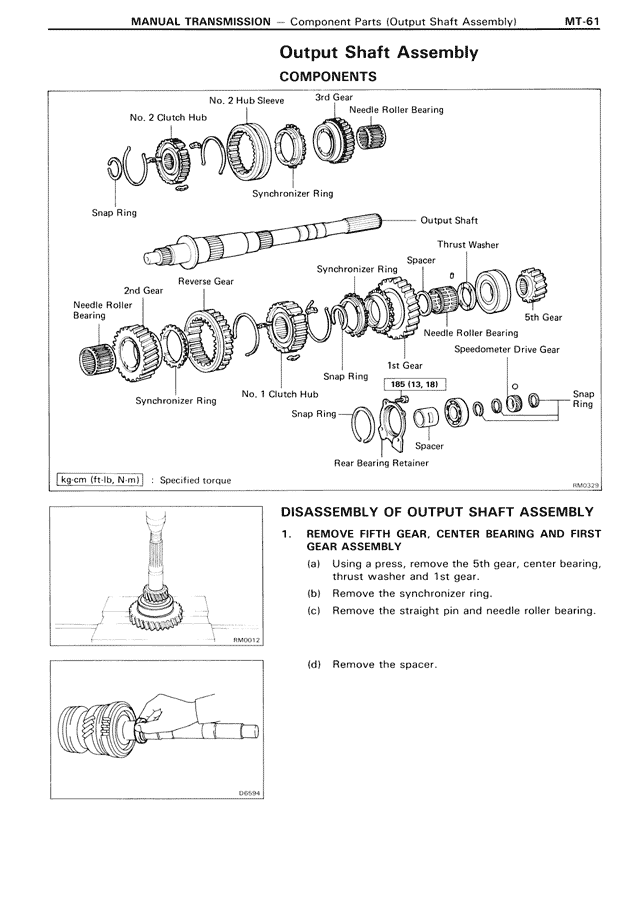

Output Shaft Assembly COMPONENTS No. 2 Hub Sleeve 3rd Gear Needle Roller Bearing No. 2 Clutch Hub Synchronizer Ring Snap Ring Output Shaft Thrust Washer Spacer Synchronizer Ring Reverse Gear 2nd Gear 5th Gear Needle Roller Bearing Needle Roller Bearing Speedometer Drive Gear 1st Gear No. 1 Clutch Hub Snap Ring HG (13, 18) Snap Ring Snap Ring Spacer Rear Bearing Retainer kg·cm (ft·lb, N·m) : Specified torque RM03229 DISASSEMBLY OF OUTPUT SHAFT ASSEMBLY 1. REMOVE FIFTH GEAR, CENTER BEARING AND FIRST GEAR ASSEMBLY (a) Using a press, remove the 5th gear, center bearing, thrust washer and 1st gear. (b) Remove the synchronizer ring. (c) Remove the straight pin and needle roller bearing. RM00272 (d) Remove the spacer. DR0584
