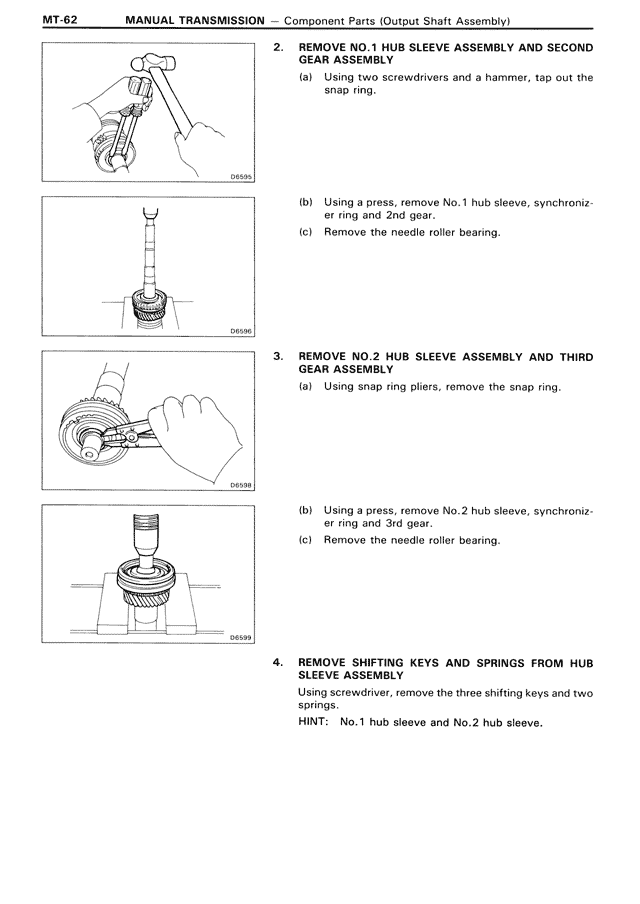

MT-62 MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly)
2. REMOVE NO.1 HUB SLEEVE ASSEMBLY AND SECOND
GEAR ASSEMBLY
(a) Using two screwdrivers and a hammer, tap out the
snap ring.
D6655
(b) Using a press, remove No.1 hub sleeve, synchroniz-
er ring and 2nd gear.
(c) Remove the needle roller bearing.
D6656
3. REMOVE NO.2 HUB SLEEVE ASSEMBLY AND THIRD
GEAR ASSEMBLY
(a) Using snap ring pliers, remove the snap ring.
D6658
(b) Using a press, remove No.2 hub sleeve, synchroniz-
er ring and 3rd gear.
(c) Remove the needle roller bearing.
D6659
4. REMOVE SHIFTING KEYS AND SPRINGS FROM HUB
SLEEVE ASSEMBLY
Using screwdriver, remove the three shifting keys and two
springs.
HINT: No.1 hub sleeve and No.2 hub sleeve.
