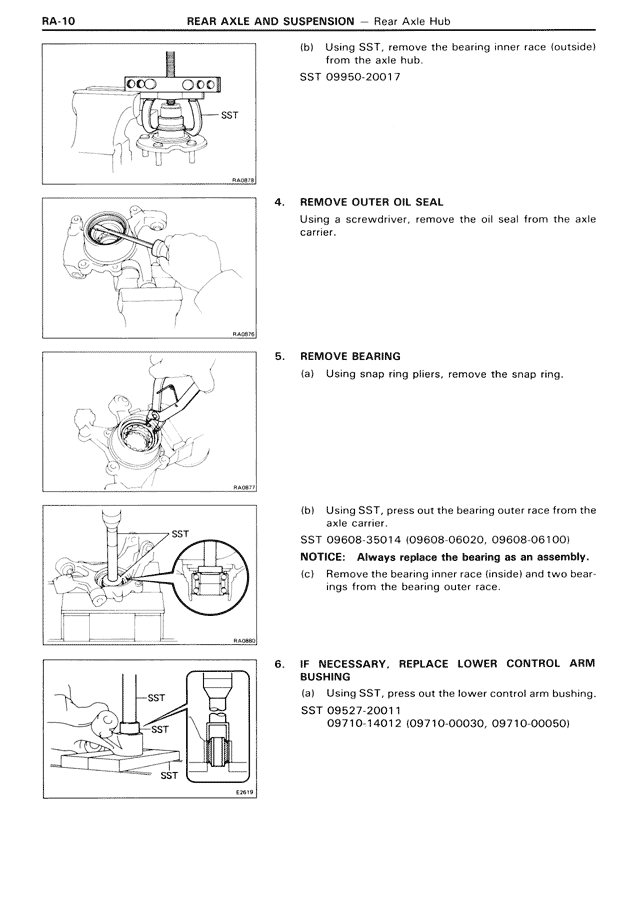

REAR AXLE AND SUSPENSION — Rear Axle Hub — MK3 Supra Rear Axle & Suspension, page 10
100%
RA-10 REAR AXLE AND SUSPENSION — Rear Axle Hub (b) Using SST, remove the bearing inner race (outside) from the axle hub. SST 09950-20017 4. REMOVE OUTER OIL SEAL Using a screwdriver, remove the outer oil seal from the axle carrier. 5. REMOVE BEARING (a) Using snap ring pliers, remove the snap ring. (b) Using SST, press out the bearing outer race from the axle carrier. SST 09608-35014 (09608-06020, 09608-06100) NOTICE: Always replace the bearing as an assembly. (c) Remove the bearing inner race (inside) and two bear- ings from the bearing outer race. 6. IF NECESSARY, REPLACE LOWER CONTROL ARM BUSHING (a) Using SST, press out the lower control arm bushing. SST 09527-20011 (09710-14012 (09710-00030, 09710-00050)
