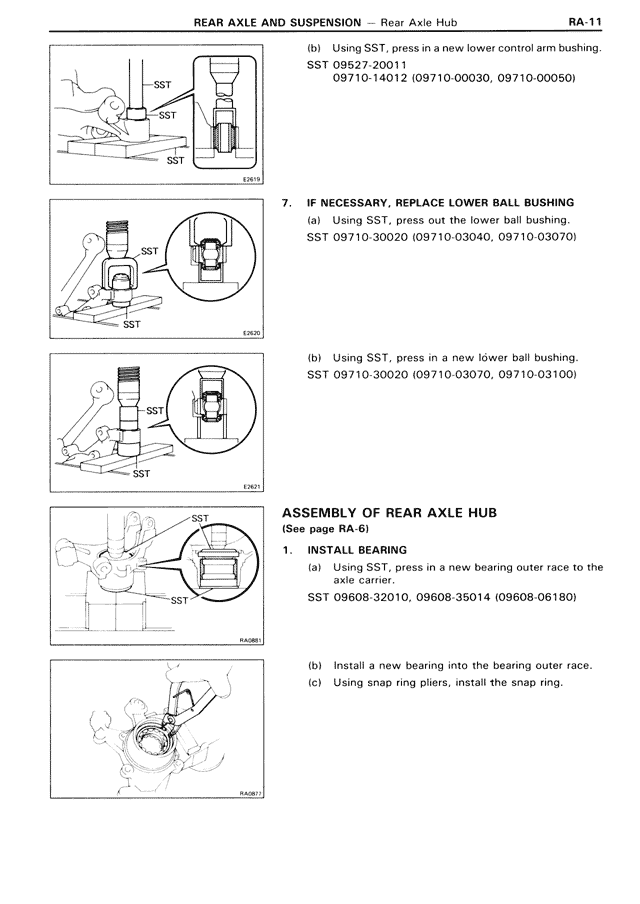

REAR AXLE AND SUSPENSION — Rear Axle Hub — MK3 Supra Rear Axle & Suspension, page 11
100%
REAR AXLE AND SUSPENSION — Rear Axle Hub RA-11 (b) Using SST, press in a new lower control arm bushing. SST 09527-20011 09710-14012 (09710-00030, 09710-00050) 7. IF NECESSARY, REPLACE LOWER BALL BUSHING (a) Using SST, press out the lower ball bushing. SST 09710-30020 (09710-03040, 09710-03070) (b) Using SST, press in a new lower ball bushing. SST 09710-30020 (09710-03070, 09710-03100) ASSEMBLY OF REAR AXLE HUB (See page RA-6) 1. INSTALL BEARING (a) Using SST, press in a new bearing outer race to the axle carrier. SST 09608-32010, 09608-35014 (09608-06180) (b) Install a new bearing into the bearing outer race. (c) Using snap ring pliers, install the snap ring.
