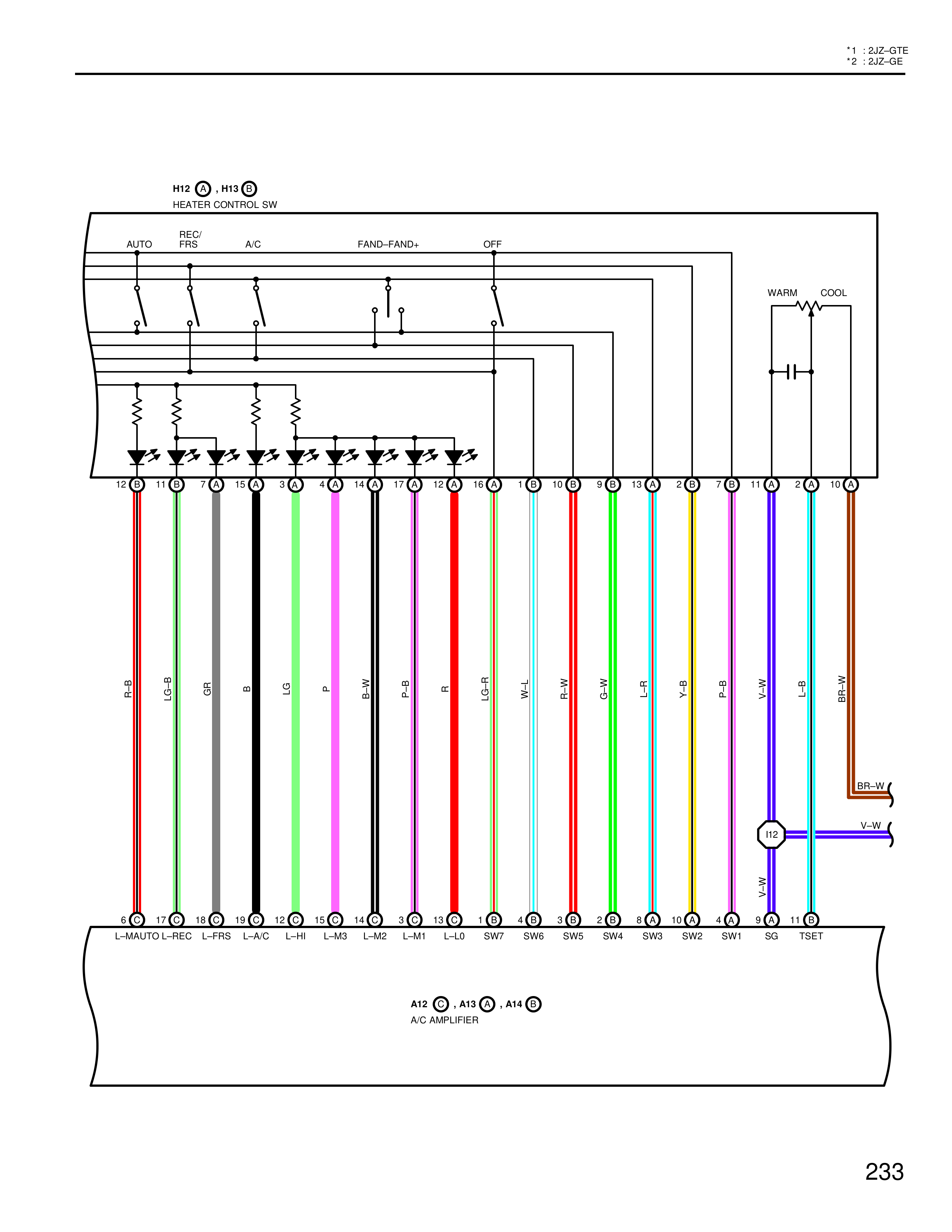

RFAC/Radiator Fan and Automatic Air Conditioning — Heater Control Sw - A/C Amplifier Connection Diagram, page 6

*1 : 2JZ-GTE
*2 : 2JZ-GE

H12 ⓒ , H13 ⓒ
HEATER CONTROL SW

AUTO    REC/FRS    A/C    FAND-FAND+    OFF

WARM    COOL

12 ⓒ  11 ⓒ  7 ⓒ  15 ⓐ  5 ⓐ  4 ⓒ  14 ⓒ  17 ⓒ  12 ⓒ  16 ⓐ  1 ⓓ  10 ⓓ  9 ⓒ  13 ⓒ  2 ⓒ  8 ⓓ  11 ⓐ  2 ⓒ  16 ⓒ

R-B    LG-B    GR    B    LG    P    B-W    P-B    R    LG-R    W-L    R-W    G-W    L-R    Y-B    P-B    V-W    L-B    BR-W

BR-W

H2
V-W

V-W

6 ⓒ  17 ⓓ  18 ⓒ  19 ⓒ  12 ⓒ  15 ⓒ  14 ⓒ  3 ⓒ  13 ⓒ  1 ⓓ  4 ⓓ  3 ⓓ  2 ⓒ  8 ⓓ  10 ⓓ  4 ⓒ  9 ⓓ  11 ⓒ
L-M/AUTO L-REC  L-FRS  L-A/C  L-HI  L-M3  L-M2  L-M1  L-L0  SW7  SW6  SW5  SW4  SW3  SW2  SW1  SG  TSET

A12 ⓒ , A13 ⓐ , A14 ⓓ
A/C AMPLIFIER
