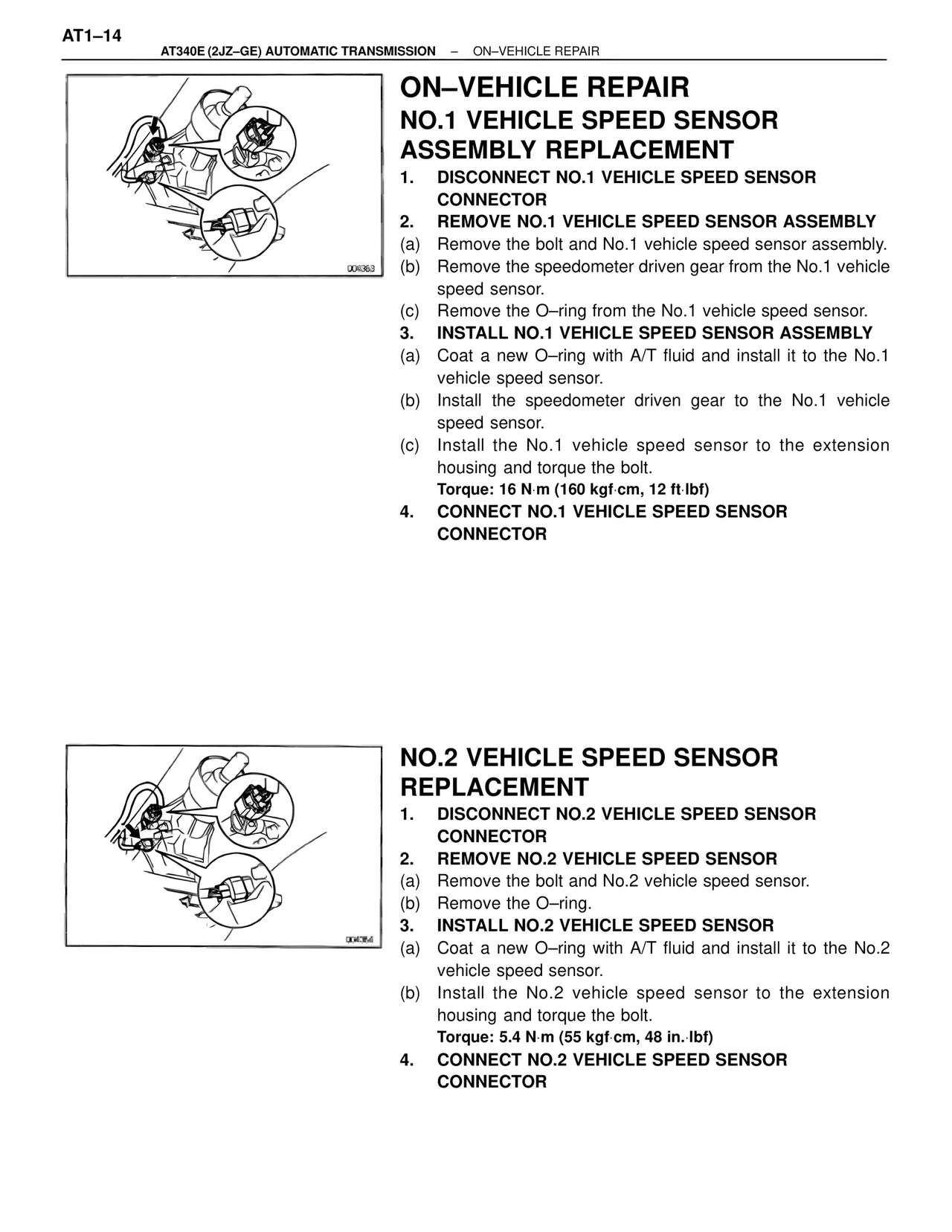

AT1–14
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION  –  ON–VEHICLE REPAIR

ON–VEHICLE REPAIR
NO.1 VEHICLE SPEED SENSOR
ASSEMBLY REPLACEMENT
1. DISCONNECT NO.1 VEHICLE SPEED SENSOR
CONNECTOR
2. REMOVE NO.1 VEHICLE SPEED SENSOR ASSEMBLY
(a) Remove the bolt and No.1 vehicle speed sensor assembly.
(b) Remove the speedometer driven gear from the No.1 vehicle
speed sensor.
(c) Remove the O–ring from the No.1 vehicle speed sensor.
3. INSTALL NO.1 VEHICLE SPEED SENSOR ASSEMBLY
(a) Coat a new O–ring with A/T fluid and install it to the No.1
vehicle speed sensor.
(b) Install the speedometer driven gear to the No.1 vehicle
speed sensor.
(c) Install the No.1 vehicle speed sensor to the extension
housing and torque the bolt.
Torque: 16 N·m (160 kgf·cm, 12 ft·lbf)
4. CONNECT NO.1 VEHICLE SPEED SENSOR
CONNECTOR

004363

NO.2 VEHICLE SPEED SENSOR
REPLACEMENT
1. DISCONNECT NO.2 VEHICLE SPEED SENSOR
CONNECTOR
2. REMOVE NO.2 VEHICLE SPEED SENSOR
(a) Remove the bolt and No.2 vehicle speed sensor.
(b) Remove the O–ring.
3. INSTALL NO.2 VEHICLE SPEED SENSOR
(a) Coat a new O–ring with A/T fluid and install it to the No.2
vehicle speed sensor.
(b) Install the No.2 vehicle speed sensor to the extension
housing and torque the bolt.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
4. CONNECT NO.2 VEHICLE SPEED SENSOR
CONNECTOR

004364
