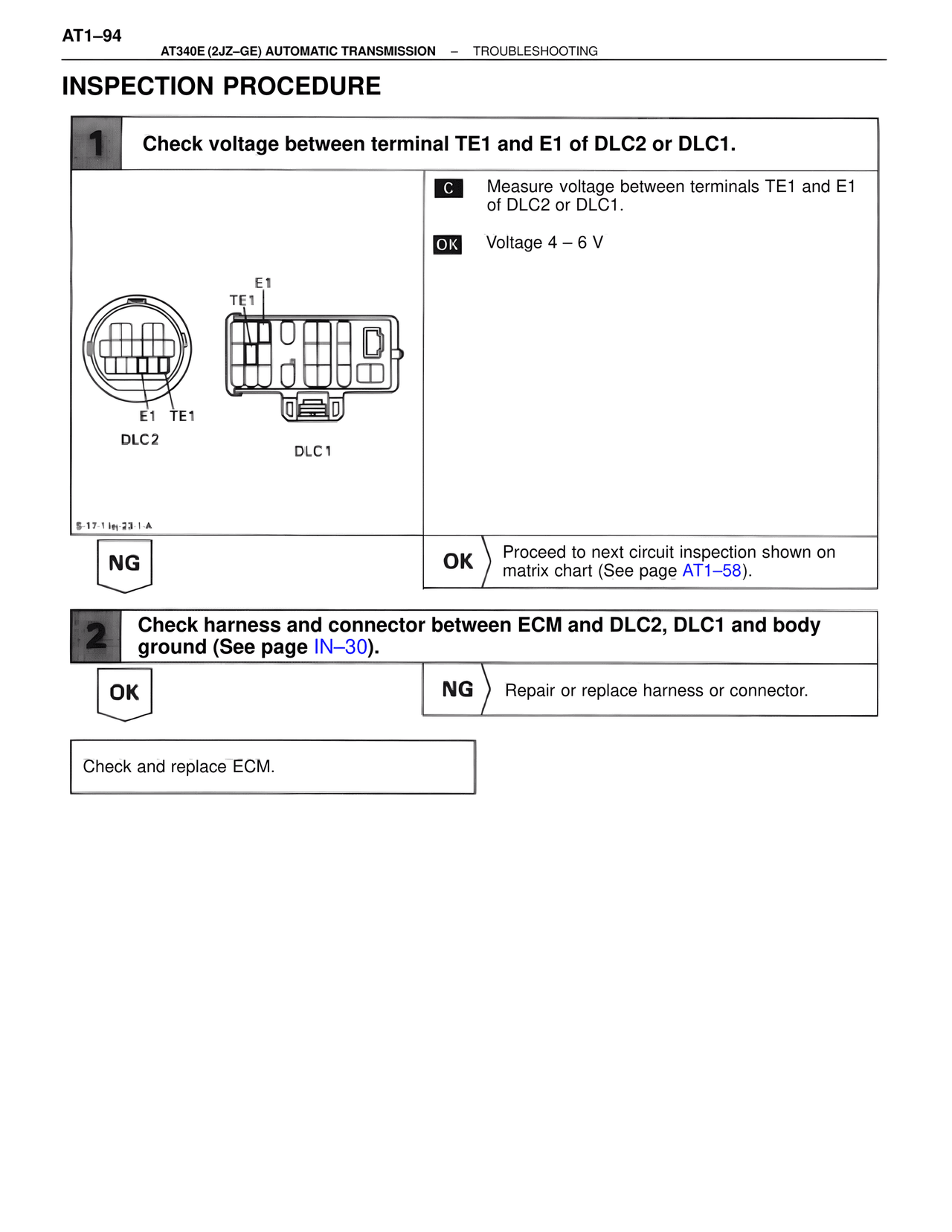

AT1–94
AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
INSPECTION PROCEDURE
1 Check voltage between terminal TE1 and E1 of DLC2 or DLC1.
C Measure voltage between terminals TE1 and E1 of DLC2 or DLC1.
OK Voltage 4 – 6 V
E1
TE1
E1 TE1
DLC2
DLC1
S-17-1 In-23-1-A
NG
OK Proceed to next circuit inspection shown on matrix chart (See page AT1–58).
2 Check harness and connector between ECM and DLC2, DLC1 and body ground (See page IN–30).
OK
NG Repair or replace harness or connector.
Check and replace ECM.
