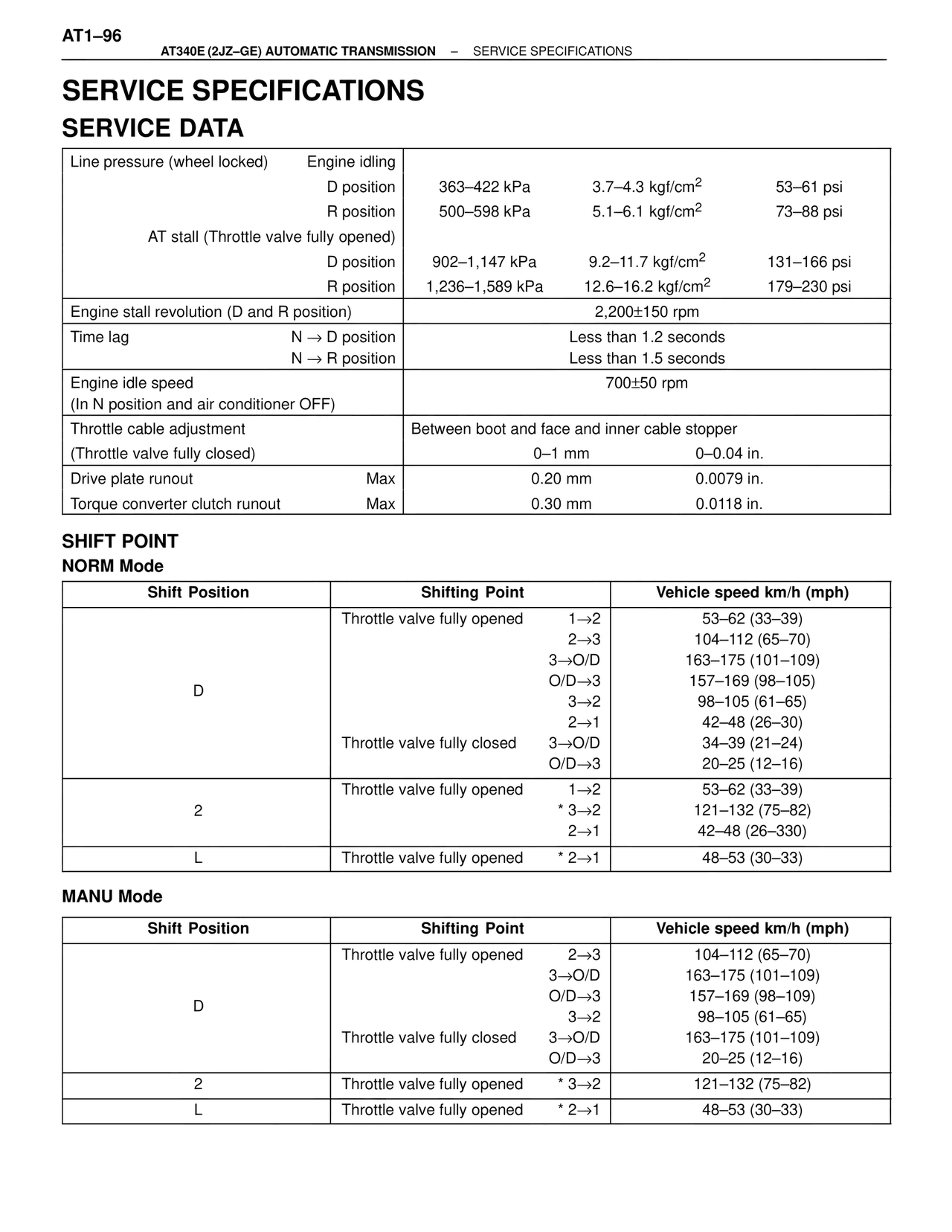

AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
Line pressure (wheel locked) Engine idling
D position 363–422 kPa 3.7–4.3 kgf/cm² 53–61 psi
R position 500–598 kPa 5.1–6.1 kgf/cm² 73–88 psi
AT stall (Throttle valve fully opened)
D position 902–1,147 kPa 9.2–11.7 kgf/cm² 131–166 psi
R position 1,236–1,589 kPa 12.6–16.2 kgf/cm² 179–230 psi
Engine stall revolution (D and R position) 2,200±150 rpm
Time lag N → D position Less than 1.2 seconds
N → R position Less than 1.5 seconds
Engine idle speed
(In N position and air conditioner OFF) 700±50 rpm
Throttle cable adjustment Between boot and face and inner cable stopper
(Throttle valve fully closed) 0–1 mm 0–0.04 in.
Drive plate runout Max 0.20 mm 0.0079 in.
Torque converter clutch runout Max 0.30 mm 0.0118 in.
SHIFT POINT
NORM Mode
Shift Position Shifting Point Vehicle speed km/h (mph)
D
Throttle valve fully opened
1→2 53–62 (33–39)
2→3 104–112 (65–70)
3→O/D 163–175 (101–109)
O/D→3 157–169 (98–105)
3→2 98–105 (61–65)
2→1 42–48 (26–30)
Throttle valve fully closed
3→O/D 34–39 (21–24)
O/D→3 20–25 (12–16)
2
Throttle valve fully opened
1→2 53–62 (33–39)
* 3→2 121–132 (75–82)
2→1 42–48 (26–330)
L Throttle valve fully opened * 2→1 48–53 (30–33)
MANU Mode
Shift Position Shifting Point Vehicle speed km/h (mph)
D
Throttle valve fully opened
2→3 104–112 (65–70)
3→O/D 163–175 (101–109)
O/D→3 157–169 (98–109)
3→2 98–105 (61–65)
Throttle valve fully closed
3→O/D 163–175 (101–109)
O/D→3 20–25 (12–16)
2 Throttle valve fully opened * 3→2 121–132 (75–82)
L Throttle valve fully opened * 2→1 48–53 (30–33)
