AT-84
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - LOWER VALVE BODY
AT0EW-02

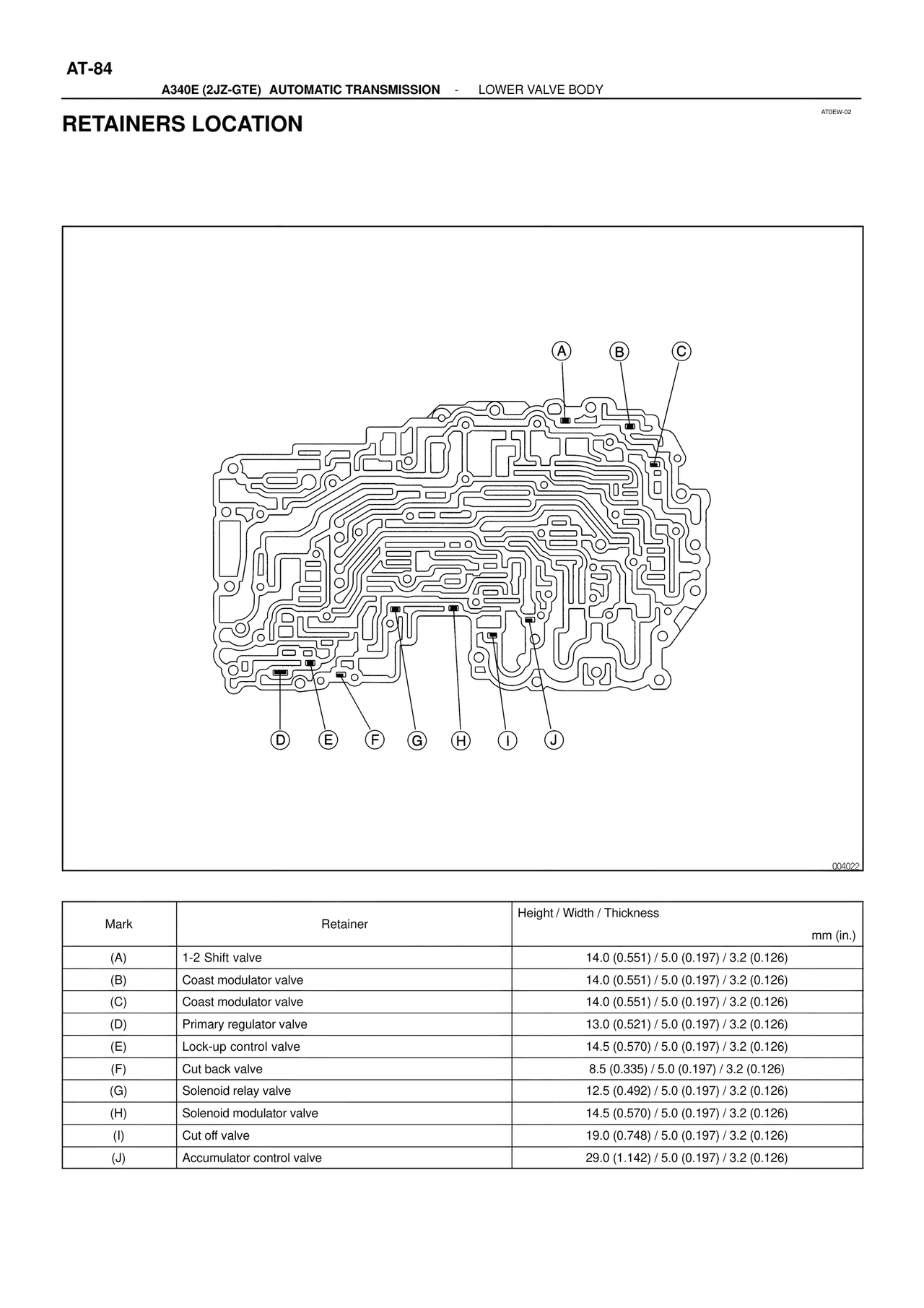

RETAINERS LOCATION
A B C
D E F G H I J
004022
Mark Retainer Height / Width / Thickness
mm (in.)
(A) 1-2 Shift valve 14.0 (0.551) / 5.0 (0.197) / 3.2 (0.126)
(B) Coast modulator valve 14.0 (0.551) / 5.0 (0.197) / 3.2 (0.126)
(C) Coast modulator valve 14.0 (0.551) / 5.0 (0.197) / 3.2 (0.126)
(D) Primary regulator valve 13.0 (0.521) / 5.0 (0.197) / 3.2 (0.126)
(E) Lock-up control valve 14.5 (0.570) / 5.0 (0.197) / 3.2 (0.126)
(F) Cut back valve 8.5 (0.335) / 5.0 (0.197) / 3.2 (0.126)
(G) Solenoid relay valve 12.5 (0.492) / 5.0 (0.197) / 3.2 (0.126)
(H) Solenoid modulator valve 14.5 (0.570) / 5.0 (0.197) / 3.2 (0.126)
(I) Cut off valve 19.0 (0.748) / 5.0 (0.197) / 3.2 (0.126)
(J) Accumulator control valve 29.0 (1.142) / 5.0 (0.197) / 3.2 (0.126)
