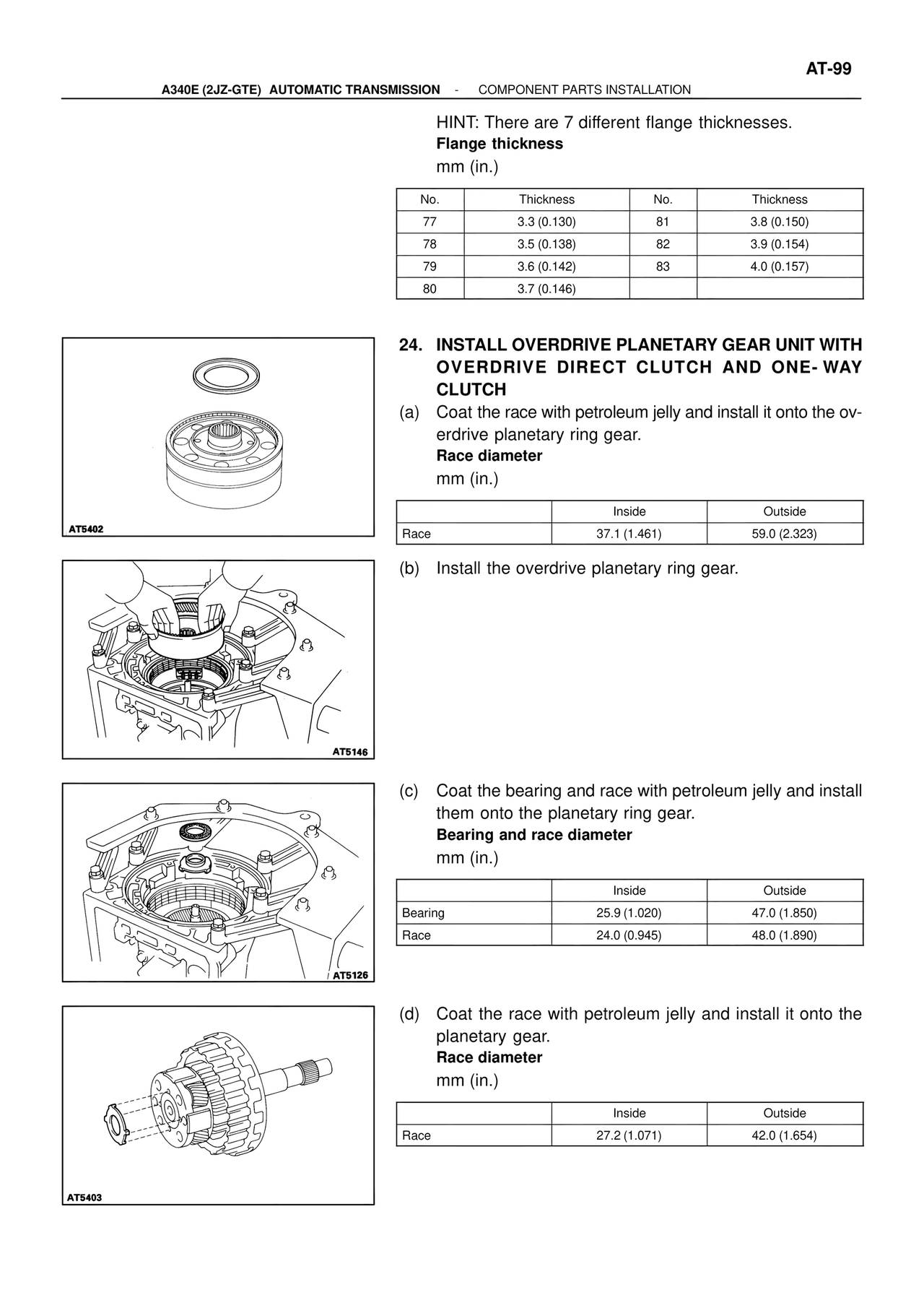

ATR/ATM Unit Repair — Install Overdrive Planetary Gear Unit with Overdrive Direct Clutch and One-Way Clutch, page 136

AT-99

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

HINT: There are 7 different flange thicknesses.
Flange thickness
mm (in.)

No. | Thickness | No. | Thickness
77 | 3.3 (0.130) | 81 | 3.8 (0.150)
78 | 3.5 (0.138) | 82 | 3.9 (0.154)
79 | 3.6 (0.142) | 83 | 4.0 (0.157)
80 | 3.7 (0.146)

24. INSTALL OVERDRIVE PLANETARY GEAR UNIT WITH OVERDRIVE DIRECT CLUTCH AND ONE- WAY CLUTCH

(a) Coat the race with petroleum jelly and install it onto the overdrive planetary ring gear.
Race diameter
mm (in.)

| Inside | Outside
Race | 37.1 (1.461) | 59.0 (2.323)

(b) Install the overdrive planetary ring gear.

(c) Coat the bearing and race with petroleum jelly and install them onto the planetary ring gear.
Bearing and race diameter
mm (in.)

| Inside | Outside
Bearing | 25.9 (1.020) | 47.0 (1.850)
Race | 24.0 (0.945) | 48.0 (1.890)

(d) Coat the race with petroleum jelly and install it onto the planetary gear.
Race diameter
mm (in.)

| Inside | Outside
Race | 27.2 (1.071) | 42.0 (1.654)

AT5402
AT5146
AT5126
AT5403
