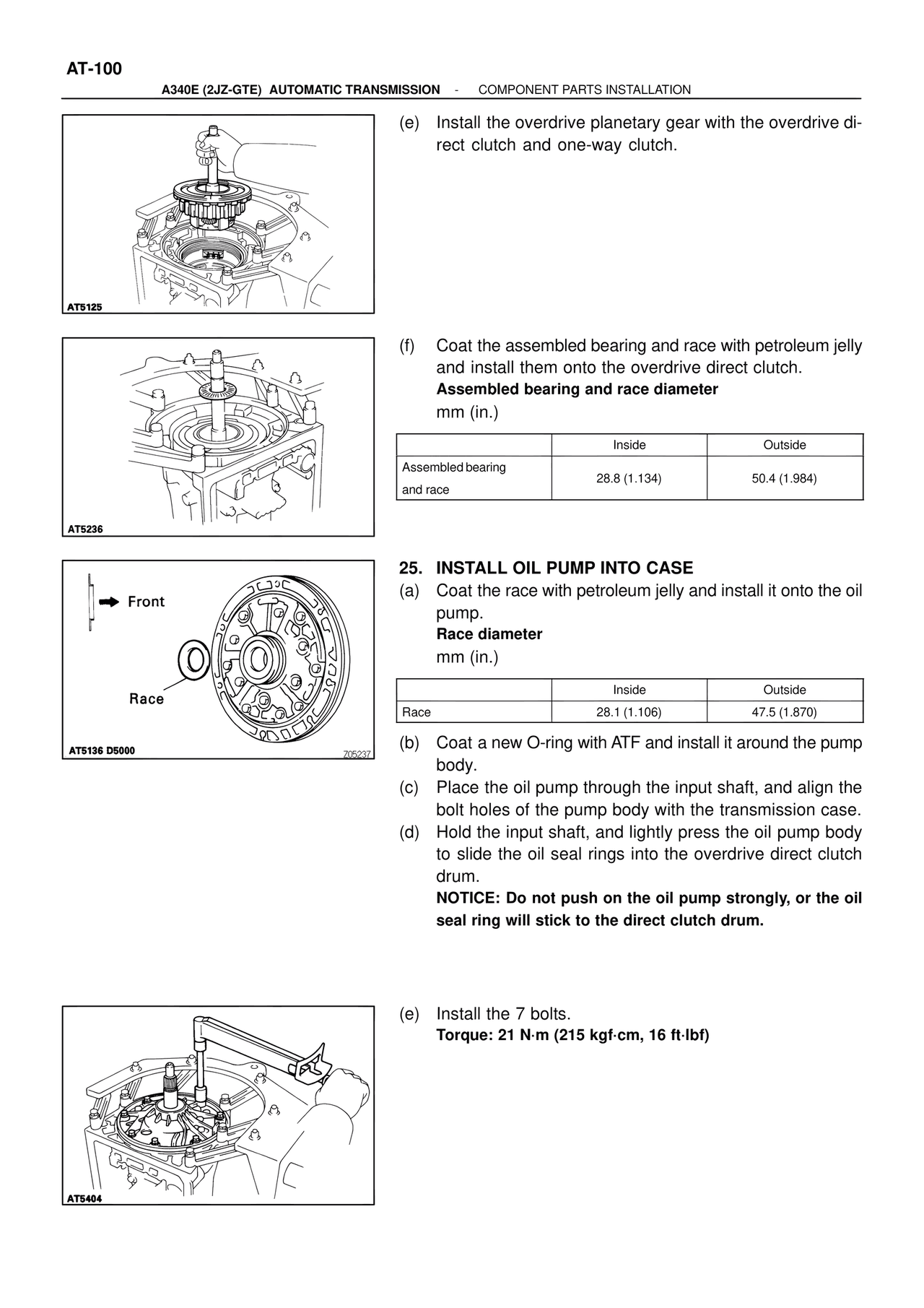

ATR/ATM Unit Repair — Install Oil Pump Into Case, page 137

AT-100
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

AT5125

(e) Install the overdrive planetary gear with the overdrive direct clutch and one-way clutch.

AT5236

(f) Coat the assembled bearing and race with petroleum jelly and install them onto the overdrive direct clutch.
Assembled bearing and race diameter
mm (in.)

                          Inside          Outside
Assembled bearing
and race              28.8 (1.134)    50.4 (1.984)

← Front

Race

AT5136 D5000                                    Z05237

25. INSTALL OIL PUMP INTO CASE
(a) Coat the race with petroleum jelly and install it onto the oil pump.
Race diameter
mm (in.)

              Inside          Outside
Race      28.1 (1.106)    47.5 (1.870)

(b) Coat a new O-ring with ATF and install it around the pump body.
(c) Place the oil pump through the input shaft, and align the bolt holes of the pump body with the transmission case.
(d) Hold the input shaft, and lightly press the oil pump body to slide the oil seal rings into the overdrive direct clutch drum.
NOTICE: Do not push on the oil pump strongly, or the oil seal ring will stick to the direct clutch drum.

AT5404

(e) Install the 7 bolts.
Torque: 21 N·m (215 kgf·cm, 16 ft·lbf)
