AT-14

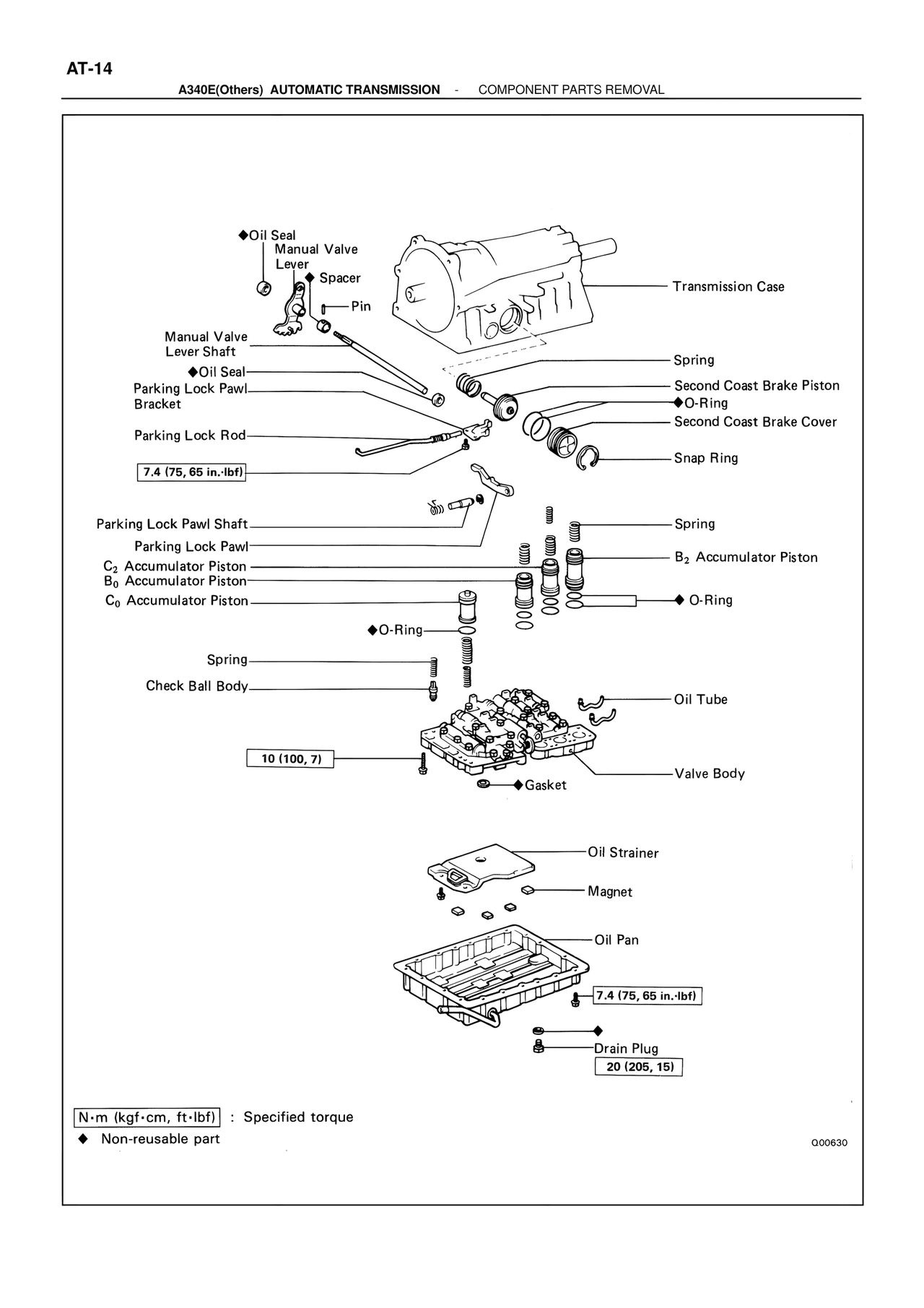

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
♦Oil Seal
Manual Valve
Lever
♦ Spacer
♦ Pin
Manual Valve
Lever Shaft
♦Oil Seal
Parking Lock Pawl
Bracket
Parking Lock Rod
7.4 (75, 65 in.·lbf)
Parking Lock Pawl Shaft
Parking Lock Pawl
C₂ Accumulator Piston
B₀ Accumulator Piston
C₀ Accumulator Piston
♦O-Ring
Spring
Check Ball Body
10 (100, 7)
Transmission Case
Spring
Second Coast Brake Piston
♦O-Ring
Second Coast Brake Cover
Snap Ring
Spring
B₂ Accumulator Piston
♦ O-Ring
Oil Tube
Valve Body
♦Gasket
Oil Strainer
Magnet
Oil Pan
7.4 (75, 65 in.·lbf)
Drain Plug
20 (205, 15)
N·m (kgf·cm, ft·lbf) : Specified torque
♦ Non-reusable part
Q00630
