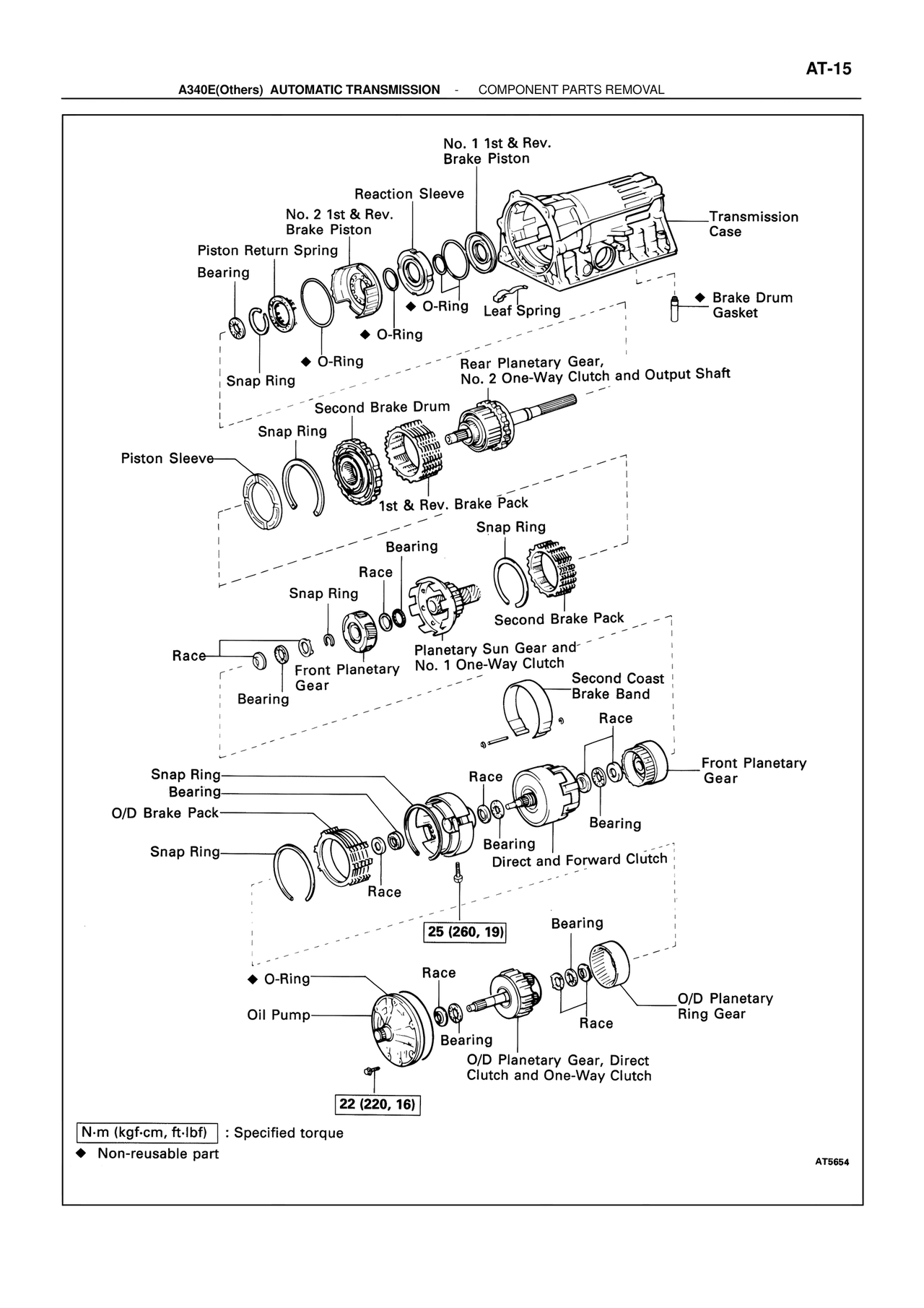

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
No. 1 1st & Rev.
Brake Piston
Reaction Sleeve
No. 2 1st & Rev.
Brake Piston
Piston Return Spring
Bearing
◆ O-Ring
◆ O-Ring
◆ O-Ring
Snap Ring
Transmission
Case
◆ Brake Drum
Gasket
Leaf Spring
Rear Planetary Gear,
No. 2 One-Way Clutch and Output Shaft
Second Brake Drum
Snap Ring
Piston Sleeve
1st & Rev. Brake Pack
Snap Ring
Bearing
Race
Snap Ring
Second Brake Pack
Race
Front Planetary
Gear
Bearing
Planetary Sun Gear and
No. 1 One-Way Clutch
Second Coast
Brake Band
Race
Front Planetary
Gear
Snap Ring
Bearing
O/D Brake Pack
Snap Ring
Race
Race
Bearing
Direct and Forward Clutch
Bearing
25 (260, 19)
Bearing
◆ O-Ring
Race
O/D Planetary
Ring Gear
Oil Pump
Bearing
Race
O/D Planetary Gear, Direct
Clutch and One-Way Clutch
22 (220, 16)
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
